SUN HYDRAULICS
RVGSLCN

$253.06 USD

SUN HYDRAULICS
Material:RVGSLCN
Model:RVGS-LCN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVGSLCN (RVGSLCN) is a ventable, pilot-operated, balanced-poppet relief cartridge designed for precise pressure regulation. This normally closed valve activates when the inlet port pressure reaches the set threshold, opening to the tank port and throttling flow to maintain desired pressure levels. It features a vent port that enables remote control via other pilot or 2-way valves, enhancing its versatility in various applications. The RVGSLCN is particularly suitable for load-holding scenarios, provided that any valves on the vent port are zero leak. This cartridge is engineered with EPDM seals for compatibility with phosphate ester fluids while being sensitive to petroleum-based substances. It can handle maximum pressures at port 2 and is ideal for cross-port relief circuits. The valve's design ensures it remains relatively unaffected by oil temperature fluctuations and contamination, thanks to its floating style construction which minimizes internal binding risks due to installation torque or machining variations. The main stage orifice is protected by a 150-micron stainless steel screen, ensuring durability and reliability under demanding conditions. The valve's response time is typically 2 ms, with a control pilot flow between 15 to 20 in\u00b3/min (0.25 to 0.33 L/min). It supports a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of up to 50 gpm (200 L/min). Installation requires specific torque settings: valve hex size of 1-1/4 inches and an installation torque of 150-160 lbf ft (203-217 Nm). Adjustments are made via an internal hex screw, with locknut torque specifications ensuring secure settings. The RVGSLCN model weighs approximately 1.60 lb (0.70 kg) and comes with a Viton seal kit option for enhanced performance in various hydraulic systems.

Description

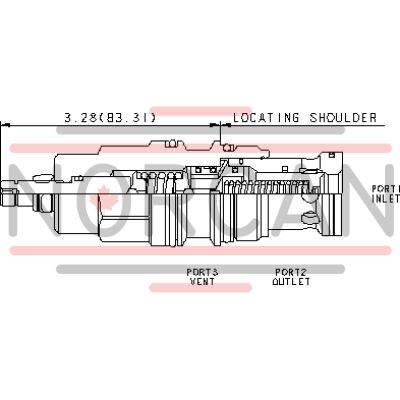

Ventable, pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
Suitable for use in load holding applications, providing that any valving on the vent port (port 3) is zero leak.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
A remote pilot relief on port 3 (vent) will control the valve below its own setting.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Main stage orifice is protected by a 150 micron stainless steel screen.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-17A
Series	3
Capacity	50 gpm200 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	15 - 20 in³/min.0,25 - 0,33 L/min.
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.60 lb0,70 kg
Seal kit - Cartridge	Viton: 990-217-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
