SUN HYDRAULICS
RVIAKNV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

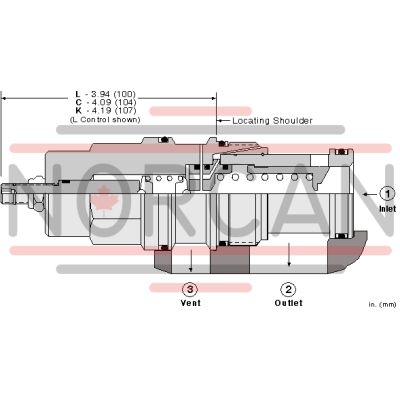

The Sun Hydraulics RVIAKNV (RVIAKNV) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This valve remains normally closed and begins to open when the inlet port pressure reaches the preset level, allowing flow to the tank port while maintaining regulated pressure. It features a vent port that enables remote control through other pilot or two-way valves. Known for its accuracy and low pressure rise versus flow characteristics, this valve operates smoothly and quietly with moderate response speed. It is capable of accepting maximum pressure at port 2, making it suitable for cross-port relief circuits, though spool leakage should be considered in such applications. The main stage orifice is shielded by a 150-micron stainless steel screen to prevent contamination. It's important to note that the relief valve setting must always exceed the pilot valve setting. The cartridge is not recommended for load-holding applications due to potential spool leakage. For systems utilizing phosphate ester fluids, cartridges with EPDM seals are available; however, these seals may be damaged by petroleum-based fluids and lubricants. This model incorporates Sun's floating style construction to reduce internal part binding caused by excessive torque during installation or variations in cavity/cartridge machining. The RVIAKNV has a capacity of 120 gpm (480 L/min) and can operate at pressures up to 5000 psi (350 bar). It features an adjustment range facilitated by 5-5 turns of the adjustment screw and requires installation torque between 350-375 lbf ft (474-508 Nm). The valve weighs approximately 3.10 lb (1.40 kg) and includes a Viton seal kit option for enhanced durability under specific conditions.
