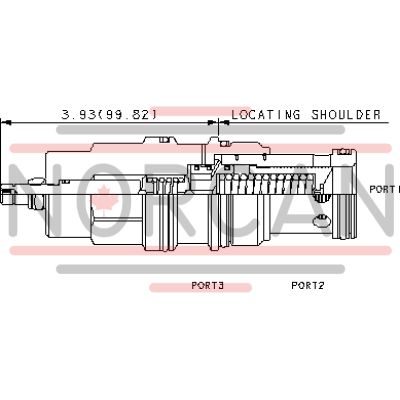

The Sun Hydraulics RVIBLAN (RVIBLAN) is a three-port normally closed modulating element with relief, designed to provide dual functionality when paired with an external orifice. This hydraulic component acts as a bypass compensator, controlling priority flow into a circuit as determined by the external orifice. Any input flow that exceeds this priority flow is redirected to the tank port 2. Additionally, if the pressure at inlet port 1 reaches the valve's set threshold, it functions as a conventional relief valve. The valve compensates pressure for all ranges at 90 psi (6 bar). Its performance curve illustrates system pressure on the X-axis and the differential pressure created across the control orifice on the Y-axis. The curves indicate various bypass flows, which are defined as pump flow minus control flow; however, control flow does not affect capacity and performance. This model is suitable for systems utilizing phosphate ester fluids when configured with EPDM seals, though exposure to petroleum-based fluids can damage these seals. It operates within a maximum pressure of 5000 psi (350 bar) and has a typical response time of 10 ms. The valve's maximum leakage rate at 110 SUS (24 cSt) is specified at 5 in\u00b3/min (80 cc/min) under conditions of 1000 psi (70 bar). Installation requires specific torque settings: valve installation torque ranges from 350 to 375 lbf-ft (474 to 508 Nm), while locknut torque should be between 80 and 90 lbf-in (9 to 10 Nm). The RVIBLAN model weighs approximately 3.10 lb (1.40 kg) and uses Viton seal kits for its cartridges.
