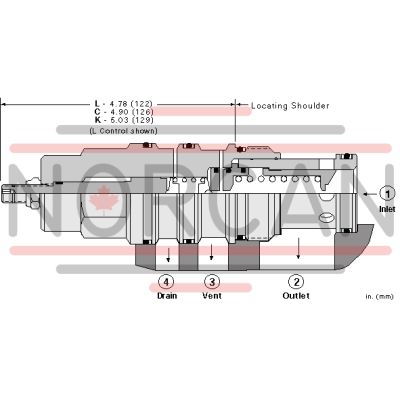

The Sun Hydraulics RVIDCBN (RVIDCBN) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain, designed as a normally closed pressure regulating valve. It functions by opening to tank port 2 and throttling flow to regulate pressure when the inlet port 1 reaches the set valve pressure. This model includes a vent port 3 for remote control via other pilot or 2-way valves and a drain port 4 to ensure insensitivity to back pressure. It is characterized by accuracy, low-pressure rise versus flow, smooth operation, quiet performance, and moderate speed. The RVIDCBN can accept maximum pressure at port 2, making it suitable for cross-port relief circuits; however, users should consider spool leakage in such applications. A key feature is the main stage orifice's protection by a 150-micron stainless steel screen. This cartridge is not recommended for load-holding applications due to potential spool leakage. The pressure at port 4 directly adds to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). Cartridges with EPDM seals are designed for phosphate ester fluid systems only; exposure to petroleum-based fluids can damage these seals. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or cavity machining variations. The RVIDCBN fits into Cavity T-24A Series 4 with a capacity of up to 120 gpm (480 L/min) and has factory pressure settings established at 4 gpm (15 L/min). Its maximum operating pressure is rated at 5000 psi (350 bar), with control pilot flow between 15-20 in\u00b3/min (0.25-0.33 L/min) and typical response time of approximately 10 ms. Maximum valve leakage is specified at 5 in\u00b3/min (80 cc/min) at an oil viscosity of 110 SUS (24 cSt).
