SUN HYDRAULICS
RVIDCEN

$694.86 USD

SUN HYDRAULICS
Material:RVIDCEN
Model:RVID-CEN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVIDCEN (RVIDCEN) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain, designed to function as a normally closed pressure regulating valve. When the inlet port 1 pressure reaches the valve setting, it opens to tank port 2 to throttle flow and regulate pressure. It features a vent port 3 for remote control and a drain port 4 that ensures insensitivity to back pressure. This valve is known for its accuracy, low-pressure rise versus flow, smooth operation, quiet performance, and moderate response time of approximately 10 ms. The main stage orifice is shielded by a 150-micron stainless steel screen. While it can accept maximum pressure at port 2 and is suitable for cross-port relief circuits, it is not ideal for load-holding applications due to spool leakage considerations. The RVIDCEN model incorporates Sun's floating style construction to reduce the risk of internal binding from excessive installation torque or machining variations. It has a maximum operating pressure of 5000 psi (350 bar) and a control pilot flow between 15 to 20 in\u00b3/min (0.25 to 0.33 L/min). The valve's leakage rate is capped at 5 in\u00b3/min (80 cc/min) at 110 SUS (24 cSt) under a pressure of 1000 psi (70 bar). This model requires careful adjustment with five clockwise turns needed to increase the setting and includes specific torque requirements for installation and locking components. Additionally, cartridges configured with EPDM seals are optimized for systems using phosphate ester fluids but are incompatible with petroleum-based fluids or lubricants due to potential seal damage. Its design supports applications requiring precise pressure regulation without being affected by backpressure influences.

Description

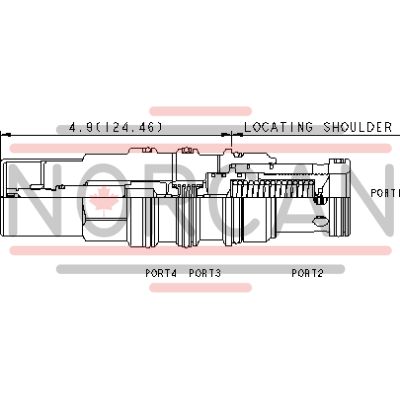

Ventable, pilot-operated, balanced piston relief cartridges with external drain are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves and a drain (port 4) that makes them insensitive to back pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Pressure at port 4 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-24A
Series	4
Capacity	120 gpm480 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	15 - 20 in³/min.0,25 - 0,33 L/min.
Response Time - Typical	10 ms10 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	5 in³/min.@1000 psi80 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	3.10 lb1,40 kg
Seal kit - Cartridge	Viton: 990-024-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
