SUN HYDRAULICS
RVIDLDN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

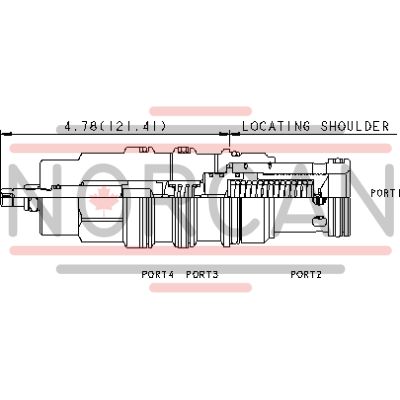

The Sun Hydraulics RVIDLDN (RVIDLDN) is a ventable, pilot-operated, balanced piston relief cartridge with an external drain, designed as a normally closed pressure regulating valve. It opens to tank port 2 when the inlet port 1 reaches the valve setting, throttling flow to manage pressure efficiently. The valve includes a vent port 3 for remote control via other pilot or 2-way valves and a drain port 4 that ensures insensitivity to back pressure. Known for its accuracy and low-pressure rise versus flow characteristics, this valve operates smoothly and quietly with moderate speed. It can handle maximum pressure at port 2 and is suitable for cross-port relief circuits, though spool leakage should be considered in such applications. The main stage orifice is safeguarded by a 150-micron stainless steel screen. This product is not recommended for load-holding applications due to spool leakage. Pressure at port 4 adds directly to the valve setting at a 1:1 ratio but should not exceed 5000 psi (350 bar). Cartridges with EPDM seals are intended for phosphate ester fluid systems only; exposure to petroleum-based fluids will damage these seals. The Sun floating style construction minimizes internal part binding risks due to excessive installation torque or cavity/cartridge machining variations. The RVIDLDN fits into Cavity T-24A Series 4 and has a capacity of up to 120 gpm (480 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Control pilot flow ranges from 15 to 20 in\u00b3/min (0.25 to 0.33 L/min), and typical response time is around 10 ms. Maximum valve leakage at specified conditions is limited to approximately 5 in\u00b3/min (80 cc/min). The adjustment mechanism involves up to five clockwise turns for increasing settings, featuring an internal hex size of 5/32 inches (4 mm) and locknut torque specifications between 80-90 lbf-in (9-10 Nm).
