SUN HYDRAULICS
RVITCWN
$806.55 USD
- SUN HYDRAULICS
- Material:RVITCWN
- Model:RVIT-CWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVITCWN (RVITCWN) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit both the maximum system pressure and the rate of pressure rise. This valve opens and then ramps closed at a constant speed, independent of settings and flows. It features a vent port (port 3) that connects between the main piston and the pilot stage for remote control by other pilot or 2-way valves. The adjust screw allows for setting both maximum relief and minimum threshold levels. Due to its internal modulation, this cartridge is resistant to cavitation-related issues such as noise and manifold erosion. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits but not for load-holding applications. When pressure at inlet port 1 surpasses the threshold, the valve opens to tank port 2, with the pilot section moving forward at a steady rate until reaching a mechanical stop. The valve provides protection for hydrostatic drives by reducing jerks from sudden reversals and is apt for cross-port applications. With a switching device, it can offer ramp characteristics similar to proportional valves. Small power units benefit from longer pump life when started against an anti-shock relief setting. The back pressure on tank port 2 adds directly to the valve setting in a 1:1 ratio, while its main stage orifice is safeguarded against contamination. The Sun floating style construction minimizes potential binding from excessive installation torque or cavity/cartridge machining variations. This model fits into Cavity T-19A Series 4 with a capacity of up to 120 gpm (480 L/min) and operates under pressures up to 5000 psi (350 bar). Its response time averages around 2 ms with pressure ramp-up times between 400-850 ms. Installation specifications include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque of 350-375 lbf-ft (474-508 Nm).
The Sun Hydraulics RVITCWN (RVITCWN) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit both the maximum system pressure and the rate of pressure rise. This valve opens and then ramps closed at a constant speed, independent of settings and flows. It features a vent port (port 3) that connects between the main piston and the pilot stage for remote control by other pilot or 2-way valves. The adjust screw allows for setting both maximum relief and minimum threshold levels. Due to its internal modulation, this cartridge is resistant to cavitation-related issues such as noise and manifold erosion. It can handle maximum pressure at port 2, making it suitable for cross-port relief circuits but not for load-holding applications. When pressure at inlet port 1 surpasses the threshold, the valve opens to tank port 2, with the pilot section moving forward at a steady rate until reaching a mechanical stop. The valve provides protection for hydrostatic drives by reducing jerks from sudden reversals and is apt for cross-port applications. With a switching device, it can offer ramp characteristics similar to proportional valves. Small power units benefit from longer pump life when started against an anti-shock relief setting. The back pressure on tank port 2 adds directly to the valve setting in a 1:1 ratio, while its main stage orifice is safeguarded against contamination. The Sun floating style construction minimizes potential binding from excessive installation torque or cavity/cartridge machining variations. This model fits into Cavity T-19A Series 4 with a capacity of up to 120 gpm (480 L/min) and operates under pressures up to 5000 psi (350 bar). Its response time averages around 2 ms with pressure ramp-up times between 400-850 ms. Installation specifications include a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque of 350-375 lbf-ft (474-508 Nm).

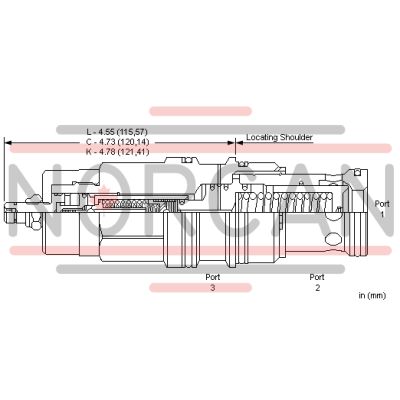

Ventable, pilot-operated, anti shock relief cartridges limit maximum system pressure and also limit the rate of pressure rise. The valve opens and then ramps closed at a constant speed, independent of settings and flows. These 3 port valves include a vent port (port 3) that connects between the main piston and the pilot stage to provide for remote control by other pilot or 2-way valves. The adjust screw determines the maximum (relief) setting and the minimum (threshold) setting.
- Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- A remote pilot relief on port 3 (vent) will control the valve below its own setting.
- Not suitable for use in load holding applications.
- When pressure at the inlet (port 1) exceeds the threshold setting, the valve opens to tank (port 2). The pilot section moves forward at a steady rate, increasing the setting by compressing the pilot spring. Maximum setting is achieved when the pilot section reaches a mechanical stop.
- Valve provides protection for hydrostatic drives by reducing the jerk caused by sudden reversals. The valve is suitable for cross-port applications.
- When used with a switching device, the valve can provide the ramp characteristic typically provided by proportional valves.
- Small power units can be started against an anti shock relief to provide longer pump life.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- The main stage orifice is protected against contamination.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 15 - 20 in³/min.0,25 - 0,33 L/min. |
| Response Time - Typical | 2 ms2 ms |
| Pressure Ramp Up Time | 400 - 850 ms400 - 850 ms |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 3.10 lb1,40 kg |
| Seal kit - Cartridge | Viton: 990-219-006 |
