SUN HYDRAULICS
RVITKWV
$820.45 USD
- SUN HYDRAULICS
- Material:RVITKWV
- Model:RVIT-KWV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

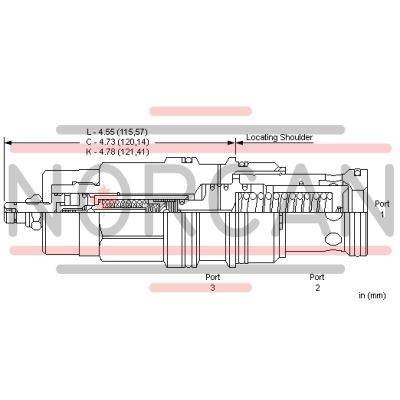

The Sun Hydraulics RVITKWV (RVITKWV) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit both maximum system pressure and the rate of pressure rise. This three-port valve features a vent port (port 3) that facilitates remote control by other pilot or two-way valves. The valve's adjust screw sets the maximum relief and minimum threshold settings. With modulation occurring inside the cartridge, it effectively reduces cavitation issues such as noise and manifold erosion. It is capable of handling maximum pressure at port 2, making it suitable for cross-port relief circuits but not for load-holding applications. When inlet port 1's pressure surpasses the threshold, the valve opens to tank port 2, allowing the pilot section to move forward steadily and increase setting by compressing the pilot spring until reaching a mechanical stop. The RVITKWV provides hydrostatic drive protection by mitigating jerks from sudden reversals and can be used in cross-port applications. When paired with a switching device, it offers ramp characteristics similar to proportional valves. Its design allows small power units to start against an anti-shock relief, prolonging pump life. Back pressure on tank port 2 adds directly to valve settings at a 1:1 ratio. The main stage orifice is contamination-protected, and its floating style construction minimizes internal part binding due to excessive installation torque or machining variations. This model fits into cavity T-19A series 4 with a capacity of up to 120 gpm (480 L/min) and operates at a maximum pressure of 5000 psi (350 bar). It has a control pilot flow rate between 15-20 in\u00b3/min (0.25-0.33 L/min), with typical response times around 2 ms and pressure ramp-up times ranging from 400-850 ms. The adjustment mechanism involves five clockwise turns for increased settings, with specific torque requirements for installation and adjustments provided in its specifications.
The Sun Hydraulics RVITKWV (RVITKWV) is a ventable, pilot-operated, anti-shock relief cartridge designed to limit both maximum system pressure and the rate of pressure rise. This three-port valve features a vent port (port 3) that facilitates remote control by other pilot or two-way valves. The valve's adjust screw sets the maximum relief and minimum threshold settings. With modulation occurring inside the cartridge, it effectively reduces cavitation issues such as noise and manifold erosion. It is capable of handling maximum pressure at port 2, making it suitable for cross-port relief circuits but not for load-holding applications. When inlet port 1's pressure surpasses the threshold, the valve opens to tank port 2, allowing the pilot section to move forward steadily and increase setting by compressing the pilot spring until reaching a mechanical stop. The RVITKWV provides hydrostatic drive protection by mitigating jerks from sudden reversals and can be used in cross-port applications. When paired with a switching device, it offers ramp characteristics similar to proportional valves. Its design allows small power units to start against an anti-shock relief, prolonging pump life. Back pressure on tank port 2 adds directly to valve settings at a 1:1 ratio. The main stage orifice is contamination-protected, and its floating style construction minimizes internal part binding due to excessive installation torque or machining variations. This model fits into cavity T-19A series 4 with a capacity of up to 120 gpm (480 L/min) and operates at a maximum pressure of 5000 psi (350 bar). It has a control pilot flow rate between 15-20 in\u00b3/min (0.25-0.33 L/min), with typical response times around 2 ms and pressure ramp-up times ranging from 400-850 ms. The adjustment mechanism involves five clockwise turns for increased settings, with specific torque requirements for installation and adjustments provided in its specifications.
Ventable, pilot-operated, anti shock relief cartridges limit maximum system pressure and also limit the rate of pressure rise. The valve opens and then ramps closed at a constant speed, independent of settings and flows. These 3 port valves include a vent port (port 3) that connects between the main piston and the pilot stage to provide for remote control by other pilot or 2-way valves. The adjust screw determines the maximum (relief) setting and the minimum (threshold) setting.
- Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
- A remote pilot relief on port 3 (vent) will control the valve below its own setting.
- Not suitable for use in load holding applications.
- When pressure at the inlet (port 1) exceeds the threshold setting, the valve opens to tank (port 2). The pilot section moves forward at a steady rate, increasing the setting by compressing the pilot spring. Maximum setting is achieved when the pilot section reaches a mechanical stop.
- Valve provides protection for hydrostatic drives by reducing the jerk caused by sudden reversals. The valve is suitable for cross-port applications.
- When used with a switching device, the valve can provide the ramp characteristic typically provided by proportional valves.
- Small power units can be started against an anti shock relief to provide longer pump life.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- The main stage orifice is protected against contamination.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 15 - 20 in³/min.0,25 - 0,33 L/min. |
| Response Time - Typical | 2 ms2 ms |
| Pressure Ramp Up Time | 400 - 850 ms400 - 850 ms |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 3.10 lb1,40 kg |
| Seal kit - Cartridge | Viton: 990-219-006 |
