SUN HYDRAULICS
SCCACAE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

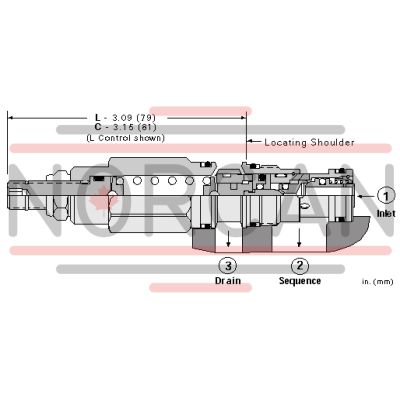

The Sun Hydraulics SCCACAE (SCCACAE) is a direct-acting sequence valve with an integrated reverse flow check feature, designed to supply a secondary circuit with flow once the inlet port pressure exceeds the valve setting. This model includes an integral check valve to facilitate reverse flow from port 2 to port 1. The pressure setting controls the pressure at port 1 relative to the drain port 3, and while it is a zero pilot flow valve, connecting port 3 is essential for maintaining a pressure reference in the control chamber. Blocking port 3 can lead to malfunction due to reciprocating seal weepage. The pressure at port 3 adds directly to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). This valve is suitable for load holding applications and offers interchangeability in all three-port sequence cartridges, ensuring consistent flow paths across frame sizes. The SCCACAE model features corrosion-resistant options, identifiable by suffixes AP or LH for stainless steel or zinc-nickel plated components, respectively. It employs Sun's floating style construction to minimize internal part binding due to installation torque or cavity machining variations. With a capacity of 15 gpm (60 L/min) and factory pressure settings established at 2 in/min (30 cc/min), this valve operates at a maximum pressure of 5000 psi (350 bar) with typical response times of 2 ms. The valve leakage at reseat is minimal, measured at up to 10 drops/minute (0.7 cc/min), and features adjustable settings via clockwise turns. Additional specifications include a check cracking pressure of 40 psi (2.8 bar), and installation torque ranging from 30-35 lbf ft (41-47 Nm). The model weight is .30 lb (.15 kg), and it uses Viton seals with available seal kits for maintenance or replacement needs.
