SUN HYDRAULICS
SCCAKWN
$100.97 USD
- SUN HYDRAULICS
- Material:SCCAKWN
- Model:SCCA-KWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

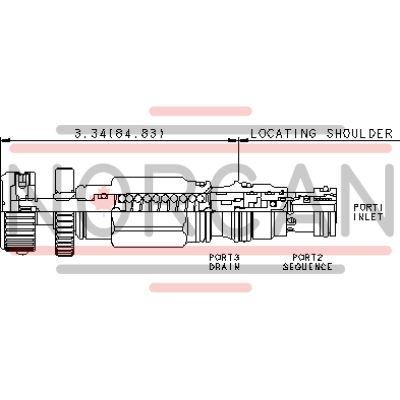

The Sun Hydraulics SCCAKWN (SCCAKWN) is a direct-acting sequence valve with an integrated reverse flow check, designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This valve features an integral check valve that facilitates reverse flow from port 2 to port 1. The pressure setting controls the pressure at port 1 in relation to the drain port 3, which must be connected to maintain proper function. Port 3 pressure is directly additive to the valve setting and should not exceed 5000 psi (350 bar). The SCCAKWN is suitable for load holding applications and is interchangeable with other three-port sequence cartridges of the same frame size. It incorporates Sun's floating style construction to minimize binding risks due to installation torque or machining variations. With a capacity of 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve offers efficient performance with typical response times of 2 ms and minimal leakage at reseat. It includes a check cracking pressure of 40 psi (2.8 bar) and features adjustments for increasing settings via clockwise turns. The cartridge is sealed with Viton, ensuring compatibility in specific fluid environments, and it supports corrosion-resistant options for harsh conditions.
The Sun Hydraulics SCCAKWN (SCCAKWN) is a direct-acting sequence valve with an integrated reverse flow check, designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This valve features an integral check valve that facilitates reverse flow from port 2 to port 1. The pressure setting controls the pressure at port 1 in relation to the drain port 3, which must be connected to maintain proper function. Port 3 pressure is directly additive to the valve setting and should not exceed 5000 psi (350 bar). The SCCAKWN is suitable for load holding applications and is interchangeable with other three-port sequence cartridges of the same frame size. It incorporates Sun's floating style construction to minimize binding risks due to installation torque or machining variations. With a capacity of 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve offers efficient performance with typical response times of 2 ms and minimal leakage at reseat. It includes a check cracking pressure of 40 psi (2.8 bar) and features adjustments for increasing settings via clockwise turns. The cartridge is sealed with Viton, ensuring compatibility in specific fluid environments, and it supports corrosion-resistant options for harsh conditions.
Direct-acting sequence valves with reverse-flow check will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. Additionally, these valves incorporate an integral check valve to provide reverse flow from port 2 (sequence) to port 1 (inlet). The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
- Although this is a zero pilot flow valve, port 3 (drain) must be connected to maintain a pressure reference in the control chamber. If port 3 is blocked, reciprocating seal weepage will cause the valve to malfunction.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 2 in³/min.30 cc/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Check Cracking Pressure | 40 psi2,8 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
