SUN HYDRAULICS
SCCALAE
$428.20 USD
- SUN HYDRAULICS
- Material:SCCALAE
- Model:SCCA-LAE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics SCCALAE (SCCALAE) is a direct-acting sequence valve with an integrated reverse flow check, designed to supply a secondary circuit with flow once the inlet port 1 pressure surpasses the valve setting. This valve incorporates an integral check valve allowing reverse flow from port 2 to port 1. The pressure at port 1 is controlled relative to the drain port 3, and it's crucial that port 3 is connected to maintain a pressure reference in the control chamber, as blocking it can lead to malfunction due to seal weepage. The pressure at port 3 directly adds to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). This makes it suitable for load-holding applications. All three-port sequence cartridges are interchangeable in terms of flow path and cavity for a given frame size. Cartridges with EPDM seals are compatible with phosphate ester fluids, but exposure to petroleum-based substances will damage these seals. Corrosion-resistant versions are available with stainless steel or zinc-nickel plated components for use in harsh environments. The Sun floating style construction minimizes internal binding risks due to installation torque or machining variations. This model has a capacity of 15 gpm (60 L/min) and operates under a maximum pressure of 5000 psi (350 bar). It features a typical response time of 2 ms and has minimal leakage at reseat, rated at just 10 drops/min (0.7 cc/min). The check cracking pressure is set at 40 psi (2.8 bar), and adjustments can be made by turning clockwise up to five times for increased settings. Installation requires specific torque values for both the valve and locknut components, ensuring secure placement and operation stability.
The Sun Hydraulics SCCALAE (SCCALAE) is a direct-acting sequence valve with an integrated reverse flow check, designed to supply a secondary circuit with flow once the inlet port 1 pressure surpasses the valve setting. This valve incorporates an integral check valve allowing reverse flow from port 2 to port 1. The pressure at port 1 is controlled relative to the drain port 3, and it's crucial that port 3 is connected to maintain a pressure reference in the control chamber, as blocking it can lead to malfunction due to seal weepage. The pressure at port 3 directly adds to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). This makes it suitable for load-holding applications. All three-port sequence cartridges are interchangeable in terms of flow path and cavity for a given frame size. Cartridges with EPDM seals are compatible with phosphate ester fluids, but exposure to petroleum-based substances will damage these seals. Corrosion-resistant versions are available with stainless steel or zinc-nickel plated components for use in harsh environments. The Sun floating style construction minimizes internal binding risks due to installation torque or machining variations. This model has a capacity of 15 gpm (60 L/min) and operates under a maximum pressure of 5000 psi (350 bar). It features a typical response time of 2 ms and has minimal leakage at reseat, rated at just 10 drops/min (0.7 cc/min). The check cracking pressure is set at 40 psi (2.8 bar), and adjustments can be made by turning clockwise up to five times for increased settings. Installation requires specific torque values for both the valve and locknut components, ensuring secure placement and operation stability.

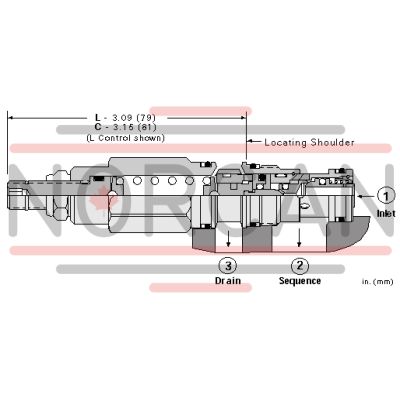

Direct-acting sequence valves with reverse-flow check will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. Additionally, these valves incorporate an integral check valve to provide reverse flow from port 2 (sequence) to port 1 (inlet). The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
- Although this is a zero pilot flow valve, port 3 (drain) must be connected to maintain a pressure reference in the control chamber. If port 3 is blocked, reciprocating seal weepage will cause the valve to malfunction.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 2 in³/min.30 cc/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Check Cracking Pressure | 40 psi2,8 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
