SUN HYDRAULICS
SCCALCN
$90.05 USD
- SUN HYDRAULICS
- Material:SCCALCN
- Model:SCCA-LCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

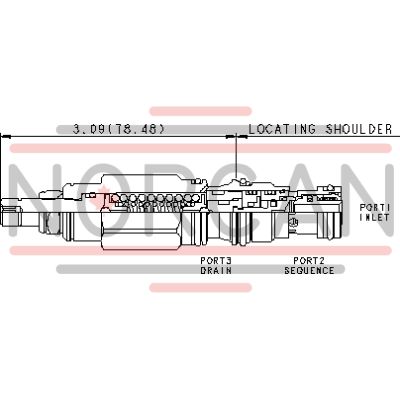

The Sun Hydraulics SCCALCN (SCCALCN) is a direct-acting sequence valve equipped with a reverse flow check, designed to supply a secondary circuit with flow once the inlet pressure at port 1 surpasses the preset valve setting. This valve features an integral check valve allowing reverse flow from port 2 to port 1. The sequence valve's pressure setting regulates the pressure at port 1 in relation to the drain port 3. Despite being a zero pilot flow valve, it is essential to connect port 3 to maintain a pressure reference in the control chamber, as blocking it can lead to malfunction due to seal weepage. The pressure at port 3 adds directly to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). This makes it suitable for load holding applications. The SCCALCN is part of Sun Hydraulics' interchangeable series of three-port sequence cartridges, offering consistent flow paths and cavity compatibility within the same frame size. It incorporates EPDM seals for systems using phosphate ester fluids, avoiding petroleum-based substances that could damage these seals. The corrosion-resistant design features optional external stainless steel or zinc-nickel plated components for harsh environments. Additionally, its floating construction style minimizes internal binding risks due to installation torque or machining variations. With a capacity of 15 gpm (60 L/min), this model has maximum operating pressures up to 5000 psi (350 bar) and typical response times of approximately 2 milliseconds. The SCCALCN includes various adjustment features such as clockwise turns for increasing settings and specific torque requirements for installation and locknut adjustments, ensuring precise and reliable performance in demanding hydraulic systems.
The Sun Hydraulics SCCALCN (SCCALCN) is a direct-acting sequence valve equipped with a reverse flow check, designed to supply a secondary circuit with flow once the inlet pressure at port 1 surpasses the preset valve setting. This valve features an integral check valve allowing reverse flow from port 2 to port 1. The sequence valve's pressure setting regulates the pressure at port 1 in relation to the drain port 3. Despite being a zero pilot flow valve, it is essential to connect port 3 to maintain a pressure reference in the control chamber, as blocking it can lead to malfunction due to seal weepage. The pressure at port 3 adds directly to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). This makes it suitable for load holding applications. The SCCALCN is part of Sun Hydraulics' interchangeable series of three-port sequence cartridges, offering consistent flow paths and cavity compatibility within the same frame size. It incorporates EPDM seals for systems using phosphate ester fluids, avoiding petroleum-based substances that could damage these seals. The corrosion-resistant design features optional external stainless steel or zinc-nickel plated components for harsh environments. Additionally, its floating construction style minimizes internal binding risks due to installation torque or machining variations. With a capacity of 15 gpm (60 L/min), this model has maximum operating pressures up to 5000 psi (350 bar) and typical response times of approximately 2 milliseconds. The SCCALCN includes various adjustment features such as clockwise turns for increasing settings and specific torque requirements for installation and locknut adjustments, ensuring precise and reliable performance in demanding hydraulic systems.
Direct-acting sequence valves with reverse-flow check will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. Additionally, these valves incorporate an integral check valve to provide reverse flow from port 2 (sequence) to port 1 (inlet). The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
- Although this is a zero pilot flow valve, port 3 (drain) must be connected to maintain a pressure reference in the control chamber. If port 3 is blocked, reciprocating seal weepage will cause the valve to malfunction.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 2 in³/min.30 cc/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Check Cracking Pressure | 40 psi2,8 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
