SUN HYDRAULICS
SCCALEE
$431.18 USD
- SUN HYDRAULICS
- Material:SCCALEE
- Model:SCCA-LEE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics SCCALEE (SCCALEE) is a direct-acting sequence valve designed with a reverse flow check feature, which allows it to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This valve incorporates an integral check valve to enable reverse flow from port 2 back to port 1. The pressure setting of this sequence valve controls the pressure at port 1 relative to drain port 3, making it essential that port 3 is connected to maintain proper pressure reference in the control chamber. It is crucial that the pressure at port 3 does not exceed 5000 psi (350 bar) as it directly adds to the valve setting at a 1:1 ratio. The SCCALEE model is suitable for load-holding applications and features interchangeable cartridges that share the same flow path and cavity for a given frame size. Cartridges configured with EPDM seals are intended for systems using phosphate ester fluids, as exposure to petroleum-based fluids will damage these seals. This model also offers corrosion-resistant options identified by suffixes AP or LH, indicating external stainless steel or zinc-nickel plated components, respectively. The Sun floating style construction minimizes internal part binding due to installation torque or machining variations. The SCCALEE has a capacity of 15 gpm (60 L/min) and can operate at pressures up to 5000 psi (350 bar). The typical response time is approximately 2 ms, with maximum valve leakage at reseat being about 10 drops/min (0.7 cc/min). It features adjustable settings via clockwise turns and requires specific torque values for installation and adjustment components. The model weighs approximately .30 lb (0.15 kg), and Viton seal kits are available for cartridge maintenance.
The Sun Hydraulics SCCALEE (SCCALEE) is a direct-acting sequence valve designed with a reverse flow check feature, which allows it to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This valve incorporates an integral check valve to enable reverse flow from port 2 back to port 1. The pressure setting of this sequence valve controls the pressure at port 1 relative to drain port 3, making it essential that port 3 is connected to maintain proper pressure reference in the control chamber. It is crucial that the pressure at port 3 does not exceed 5000 psi (350 bar) as it directly adds to the valve setting at a 1:1 ratio. The SCCALEE model is suitable for load-holding applications and features interchangeable cartridges that share the same flow path and cavity for a given frame size. Cartridges configured with EPDM seals are intended for systems using phosphate ester fluids, as exposure to petroleum-based fluids will damage these seals. This model also offers corrosion-resistant options identified by suffixes AP or LH, indicating external stainless steel or zinc-nickel plated components, respectively. The Sun floating style construction minimizes internal part binding due to installation torque or machining variations. The SCCALEE has a capacity of 15 gpm (60 L/min) and can operate at pressures up to 5000 psi (350 bar). The typical response time is approximately 2 ms, with maximum valve leakage at reseat being about 10 drops/min (0.7 cc/min). It features adjustable settings via clockwise turns and requires specific torque values for installation and adjustment components. The model weighs approximately .30 lb (0.15 kg), and Viton seal kits are available for cartridge maintenance.

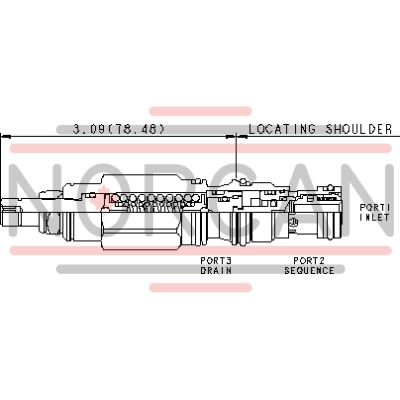

Direct-acting sequence valves with reverse-flow check will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. Additionally, these valves incorporate an integral check valve to provide reverse flow from port 2 (sequence) to port 1 (inlet). The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
- Although this is a zero pilot flow valve, port 3 (drain) must be connected to maintain a pressure reference in the control chamber. If port 3 is blocked, reciprocating seal weepage will cause the valve to malfunction.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 2 in³/min.30 cc/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Check Cracking Pressure | 40 psi2,8 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
