SUN HYDRAULICS
SCCALEV
$97.99 USD
- SUN HYDRAULICS
- Material:SCCALEV
- Model:SCCA-LEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

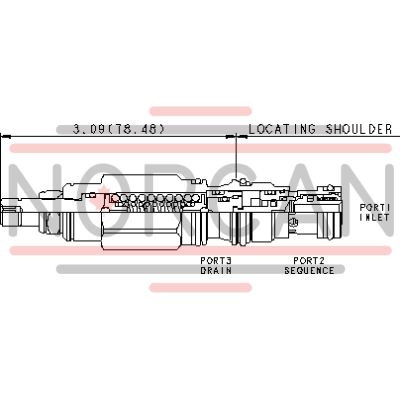

The Sun Hydraulics SCCALEV (SCCALEV) is a direct-acting sequence valve with a reverse flow check, designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve setting. It features an integral check valve to enable reverse flow from port 2 to port 1. The pressure setting of this sequence valve manages the pressure at port 1 relative to the drain port 3. It's crucial that port 3 remains connected to maintain a pressure reference in the control chamber, as blocking it can lead to malfunction due to seal weepage. The maximum allowable pressure at port 3 is additive to the valve setting and should not exceed 5000 psi (350 bar). This product is suitable for load-holding applications and offers interchangeability in terms of flow path and cavity for similar frame sizes. It incorporates EPDM seals for use with phosphate ester fluids, whereas exposure to petroleum-based fluids will damage these seals. Corrosion-resistant versions are available, identified by model code suffixes AP or LH, featuring stainless steel or zinc-nickel plated components respectively. The valve employs Sun's floating style construction, aimed at minimizing internal binding risks due to excessive torque or machining variations. It has a capacity of 15 gpm (60 L/min) and operates within a maximum pressure of 5000 psi (350 bar). The typical response time is around 2 ms, with a maximum leakage rate of 10 drops/min (0.7 cc/min) at reseat conditions. Adjustments can be made through five clockwise turns, with specific torque requirements for installation and adjustment components provided in its specifications.
The Sun Hydraulics SCCALEV (SCCALEV) is a direct-acting sequence valve with a reverse flow check, designed to supply a secondary circuit with flow once the pressure at inlet port 1 surpasses the valve setting. It features an integral check valve to enable reverse flow from port 2 to port 1. The pressure setting of this sequence valve manages the pressure at port 1 relative to the drain port 3. It's crucial that port 3 remains connected to maintain a pressure reference in the control chamber, as blocking it can lead to malfunction due to seal weepage. The maximum allowable pressure at port 3 is additive to the valve setting and should not exceed 5000 psi (350 bar). This product is suitable for load-holding applications and offers interchangeability in terms of flow path and cavity for similar frame sizes. It incorporates EPDM seals for use with phosphate ester fluids, whereas exposure to petroleum-based fluids will damage these seals. Corrosion-resistant versions are available, identified by model code suffixes AP or LH, featuring stainless steel or zinc-nickel plated components respectively. The valve employs Sun's floating style construction, aimed at minimizing internal binding risks due to excessive torque or machining variations. It has a capacity of 15 gpm (60 L/min) and operates within a maximum pressure of 5000 psi (350 bar). The typical response time is around 2 ms, with a maximum leakage rate of 10 drops/min (0.7 cc/min) at reseat conditions. Adjustments can be made through five clockwise turns, with specific torque requirements for installation and adjustment components provided in its specifications.
Direct-acting sequence valves with reverse-flow check will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. Additionally, these valves incorporate an integral check valve to provide reverse flow from port 2 (sequence) to port 1 (inlet). The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
- Although this is a zero pilot flow valve, port 3 (drain) must be connected to maintain a pressure reference in the control chamber. If port 3 is blocked, reciprocating seal weepage will cause the valve to malfunction.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 2 in³/min.30 cc/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Check Cracking Pressure | 40 psi2,8 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
