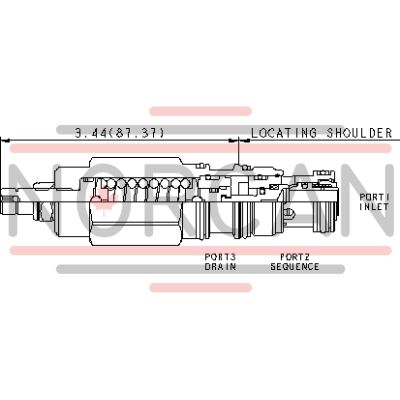

The Sun Hydraulics SCEALDV (SCEALDV) is a direct-acting sequence valve equipped with a reverse flow check feature, designed to manage the flow to a secondary circuit once the inlet port pressure surpasses the valve's set threshold. This device includes an integral check valve enabling reverse flow from port 2 back to port 1. The sequence valve's pressure setting governs the pressure at port 1 relative to that at drain port 3, which must be connected to maintain proper function. Blocking port 3 can lead to malfunction due to seal weepage. The pressure at port 3 adds directly to the valve setting and should not exceed 5000 psi or 350 bar. This makes it suitable for load-holding applications. These valves are interchangeable across all three-port sequence cartridges of the same frame size, featuring Sun\u2019s floating style construction to prevent internal part binding from excessive torque or machining variations. The SCEALDV has a capacity of up to 30 gpm (120 L/min) and operates effectively at pressures up to 5000 psi (350 bar). Its typical response time is around 2 ms, with maximum leakage rates at reseat being no more than 10 drops/min (0.7 cc/min). It features a check cracking pressure of approximately 25 psi (1.7 bar), and its settings can be adjusted by turning clockwise up to five times. The installation requires specific torques: valve hex size is set at 1-1/8 in., with an installation torque between 45 - 50 lbf ft (61 - 68 Nm), and locknut torque of about 80 - 90 lbf in (9 -10 Nm). The model weighs approximately .60 lb (.30 kg) and utilizes Viton seal kits for maintenance purposes.
