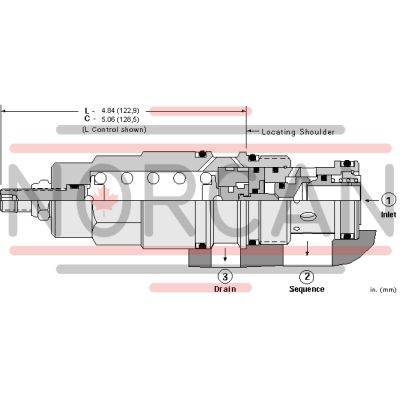

The Sun Hydraulics SCIACEN (Material Number: SCIACEN) is a direct-acting sequence valve with an integrated reverse flow check, designed to supply a secondary circuit with flow once the inlet port 1 pressure exceeds the valve setting. This component also features an integral check valve enabling reverse flow from port 2 to port 1. The sequence valve's pressure setting manages the pressure at port 1 relative to the drain port 3, and all three-port sequence cartridges are interchangeable in terms of flow path and cavity for a given frame size. Despite being a zero pilot flow valve, connecting port 3 is essential to maintain a pressure reference in the control chamber, as blocking it can lead to malfunction due to reciprocating seal weepage. The pressure at port 3 adds directly to the valve setting at a 1:1 ratio, with a maximum of 5000 psi (350 bar). The SCIACEN model is suitable for load-holding applications and utilizes EPDM seals compatible with phosphate ester fluids, though exposure to petroleum-based substances will damage these seals. The cartridge employs Sun's floating style construction, minimizing internal part binding due to installation torque or machining variations. Key specifications include a cavity T-19A series with a capacity of 120 gpm (480 L/min), factory pressure settings established at 2 in/min (30 cc/min), and maximum operating pressure of 5000 psi (350 bar). The typical response time is approximately 2 ms, and maximum valve leakage at reseat is limited to 10 drops/min (0.7 cc/min). The check cracking pressure stands at 25 psi (1.7 bar), while adjustment requires up to five clockwise turns for increased settings. Installation torque ranges between 350-375 lbf ft (474-508 Nm), with adjustment screw and locknut hex sizes specified for precise assembly.
