SUN HYDRAULICS
SCIALDV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

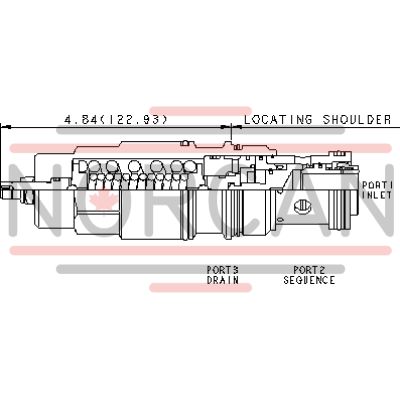

The Sun Hydraulics SCIALDV (SCIALDV) is a direct-acting sequence valve with a reverse flow check, designed to supply a secondary circuit with flow once the inlet port 1 pressure exceeds the valve setting. This valve features an integral check valve facilitating reverse flow from port 2 sequence to port 1 inlet. It controls the pressure at port 1 relative to the drain port 3 pressure, ensuring precise operation. All three-port sequence cartridges are physically and functionally interchangeable, offering the same flow path and cavity for a given frame size. Despite being a zero pilot flow valve, connecting port 3 is crucial to maintain pressure reference in the control chamber; blocking it may cause malfunction due to reciprocating seal weepage. Port 3 pressure adds directly to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). The SCIALDV is suitable for load-holding applications and incorporates EPDM seals for compatibility with phosphate ester fluids, avoiding exposure to petroleum-based fluids. The Sun floating style construction minimizes internal part binding due to excessive installation torque or machining variations. It fits into cavity T-19A Series 4, handling up to 120 gpm (480 L/min) with factory pressure settings established at 2 in\u00b3/min (30 cc/min). The maximum operating pressure is set at 5000 psi (350 bar), with typical response time around 2 ms and maximum valve leakage at reseat of 10 drops/min (0.7 cc/min). The check cracking pressure is set at 25 psi (1.7 bar), adjustable by turning clockwise up to five times for increased setting. Installation requires a torque of 350 - 375 lbf ft (474 - 508 Nm), with additional specifications on adjustment screw and locknut sizes and torques provided for precise setup. This model weighs approximately 3.10 lb (1.40 kg) and includes Viton seal kit options for specific fluid compatibility needs.
