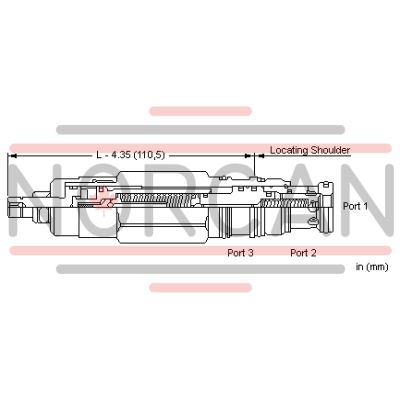

The Sun Hydraulics SDFTLWV (SDFTLWV) is a pilot-operated, anti-shock sequence cartridge valve designed to limit maximum system pressure and control the rate of pressure rise. This valve opens and closes at a constant speed, independent of settings and flows, with an adjust screw to set the maximum relief and minimum threshold settings. It features an external drain that makes it insensitive to back pressure at port 2, allowing it to function effectively in cross port relief circuits. The SDFTLWV is immune to cavitation-related issues such as noise and manifold erosion due to its internal modulating design. It is not suitable for sequencing cylinders or load holding applications. The valve can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 30 gpm (120 L/min). Its cavity is T-2A Series 2, with factory pressure settings established at 4 gpm (15 L/min). The pilot flow ranges from 10 to 25 in\u00b3/min (0.16 to 0.41 L/min), and the typical response time is approximately 2 ms, with a pressure ramp-up time between 200 to 400 ms. The adjustment mechanism involves four and a half clockwise turns to increase the setting. Constructed with Sun's floating style design, this cartridge minimizes internal part binding due to installation torque or machining variations. It incorporates a main stage orifice protected against contamination and accepts maximum pressure at port 2. The valve is relatively insensitive to varying oil temperatures and contamination within the hydraulic system. Installation specifications include a valve hex size of 1-1/8 in (28.6 mm) with an installation torque requirement of 45-50 lbf\u2219ft (61-68 Nm).
