SUN HYDRAULICS
SDHTLAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

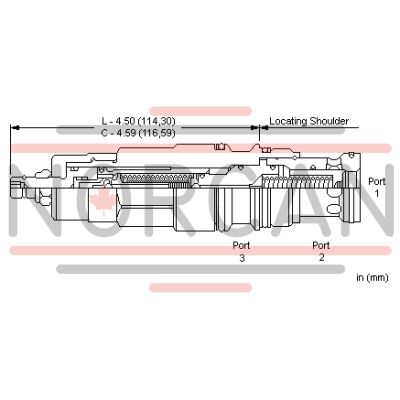

The Sun Hydraulics SDHTLAN (Material Number: SDHTLAN) is a pilot-operated, anti-shock relief cartridge designed to limit maximum system pressure and control the rate of pressure rise. This valve opens and ramps closed at a constant speed, independent of settings and flows, with an adjust screw for setting maximum relief and minimum threshold pressures. Its external drain ensures insensitivity to pressure at port 2, making it suitable for cross-port relief circuits but not for sequencing cylinders or load-holding applications. The valve is immune to cavitation-related issues such as noise and manifold erosion due to its internal modulating mechanism. It can handle a maximum operating pressure of 5000 psi (350 bar), with the pressure at port 3 being directly additive to the valve setting at a 1:1 ratio. The valve's performance remains consistent despite varying oil temperatures or contamination levels, thanks to its robust design featuring Sun's floating style construction that prevents internal binding from excessive installation torque or machining variations. The SDHTLAN can accommodate up to 60 gpm (240 L/min) flow capacity with a typical response time of 2 ms and a pressure ramp-up time between 300-500 ms. It features a main stage orifice protected against contamination, ensuring reliable operation even in challenging conditions. The valve requires specific installation torques for optimal performance: 150-160 lbf ft (203-217 Nm) for the valve itself and 80-90 lbf in (9-10 Nm) for the locknut. With an overall weight of 1.50 lb (0.70 kg), this cartridge also includes Viton seals under model number 990217006, providing enhanced durability in demanding environments.
