SUN HYDRAULICS
SQDBJCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

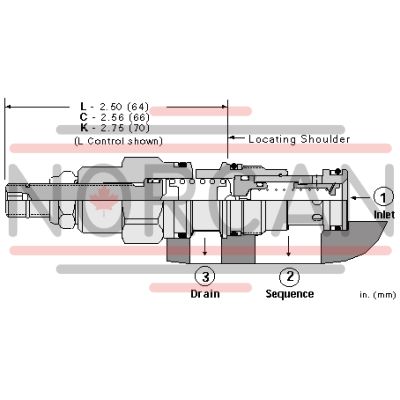

The Sun Hydraulics SQDBJCN (Material Number: SQDBJCN) is a kickdown sequence valve designed to open completely and maintain an open state once the inlet port 1 pressure surpasses the valve setting, enabling unrestricted flow from port 1 to port 2. The valve remains open as long as the pressure at port 1 is greater than at port 2. It resets when the pressure at port 1 drops below the setting, flow ceases from port 1 to port 2, and pressure at port 2 equals or exceeds that at port 1. This sequence valve is not suitable for load-holding applications. It features a main stage orifice protected by a 150-micron stainless steel screen and can handle pressures up to a maximum of 5000 psi (350 bar) at port 3, which directly adds to the valve setting in a 1:1 ratio. The SQDBJCN is intended for use on the actuator side of systems since flow must halt for reset; if used on the pump side, pump flow must be stopped for resetting. This model incorporates Sun's floating style construction, reducing potential binding from excessive installation torque or machining variations. The cartridge valves are corrosion-resistant with options for external stainless steel or zinc-nickel plated components. The cavity type is T-11A with Series 1 capacity of up to 15 gpm (60 L/min), and factory pressure settings are established at the kickdown point. Additional specifications include a typical response time of 25 ms, maximum operating leakage of approximately 30 cc/min, and adjustment capabilities through five clockwise turns to increase settings. Installation requires specific torque values: valve installation torque ranges between 30 - 35 lbf ft (41 - 47 Nm), while locknut torque ranges between 80 -90 lbf in (9 -10 Nm). The model weighs approximately .40 lb (.20 kg) and uses a Viton seal kit identified by cartridge number: 990011006.
