SUN HYDRAULICS
SQHBKCV
$301.91 USD
- SUN HYDRAULICS
- Material:SQHBKCV
- Model:SQHB-KCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

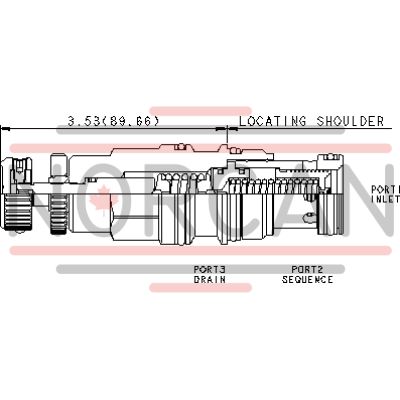

The Sun Hydraulics SQHBKCV (SQHBKCV) is a highly specialized kickdown sequence valve designed to provide an unrestricted flow path once the pressure at inlet port 1 exceeds the valve setting. This valve remains open as long as the pressure at port 1 surpasses that of port 2, ensuring efficient flow management. It is crucial for applications where flow must cease to reset, making it ideal for use on the actuator side of a hydraulic system. The valve's main stage orifice is safeguarded by a 150-micron stainless steel screen, and it boasts a maximum operating pressure of 5000 psi (350 bar). The factory pressure settings are established at the kickdown point, with a typical response time of 25 ms. Physically and functionally interchangeable with all three-port sequence cartridges, this model should not be used in load-holding applications. It features Sun Hydraulics' floating style construction, minimizing internal part binding risks due to excessive installation torque or machining variations. The SQHBKCV has a capacity of 60 gpm (240 L/min) and exhibits minimal leakage with a maximum valve leakage rate of 4 in\u00b3/min (65 cc/min) at 110 SUS (24 cSt). Adjustments can be made by turning the adjustment screw clockwise up to five turns to increase settings. Installation requires specific torque specifications: the valve hex size is 1\u00bc inches (31.8 mm), with an installation torque range between 150-160 lbf\u00b7ft (203-217 Nm). The adjustment screw internal hex size is ^5/32 inches (4 mm), and the locknut hex size is ^9/16 inches (15 mm), requiring a locknut torque of 80-90 lbf\u00b7in (9-10 Nm). Weighing in at approximately 1.50 lb (0.70 kg), this valve is built for durability and precision in demanding hydraulic environments.
The Sun Hydraulics SQHBKCV (SQHBKCV) is a highly specialized kickdown sequence valve designed to provide an unrestricted flow path once the pressure at inlet port 1 exceeds the valve setting. This valve remains open as long as the pressure at port 1 surpasses that of port 2, ensuring efficient flow management. It is crucial for applications where flow must cease to reset, making it ideal for use on the actuator side of a hydraulic system. The valve's main stage orifice is safeguarded by a 150-micron stainless steel screen, and it boasts a maximum operating pressure of 5000 psi (350 bar). The factory pressure settings are established at the kickdown point, with a typical response time of 25 ms. Physically and functionally interchangeable with all three-port sequence cartridges, this model should not be used in load-holding applications. It features Sun Hydraulics' floating style construction, minimizing internal part binding risks due to excessive installation torque or machining variations. The SQHBKCV has a capacity of 60 gpm (240 L/min) and exhibits minimal leakage with a maximum valve leakage rate of 4 in\u00b3/min (65 cc/min) at 110 SUS (24 cSt). Adjustments can be made by turning the adjustment screw clockwise up to five turns to increase settings. Installation requires specific torque specifications: the valve hex size is 1\u00bc inches (31.8 mm), with an installation torque range between 150-160 lbf\u00b7ft (203-217 Nm). The adjustment screw internal hex size is ^5/32 inches (4 mm), and the locknut hex size is ^9/16 inches (15 mm), requiring a locknut torque of 80-90 lbf\u00b7in (9-10 Nm). Weighing in at approximately 1.50 lb (0.70 kg), this valve is built for durability and precision in demanding hydraulic environments.
Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Should not be used in load holding applications.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Factory Pressure Settings Established at | Kick down pointKick down point |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 25 ms25 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.65 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.50 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
