SUN HYDRAULICS
SQHBKWN
$290.99 USD
- SUN HYDRAULICS
- Material:SQHBKWN
- Model:SQHB-KWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics SQHBKWN (SQHBKWN) is a kickdown sequence valve designed for hydraulic systems where a complete and sustained flow path is required once the inlet pressure surpasses the valve's set threshold. This valve facilitates an unrestricted flow from port 1 to port 2, remaining open as long as the pressure at port 1 exceeds that at port 2. For resetting, the pressure at port 1 must drop below the set point, and flow must cease with equal or greater pressure at port 2 compared to port 1. Designed for actuator-side applications, this valve should not be used in load-holding scenarios. It features a floating style construction to reduce internal binding risks and includes a protective stainless steel screen for its main stage orifice. The valve accommodates pressures up to 5000 psi (350 bar) with a typical response time of 25 ms. Its installation requires specific torque settings: 150-160 lbf ft (203-217 Nm) for the valve and locknut torque of 80-90 lbf in (9-10 Nm). The SQHBKWN has a capacity of up to 60 gpm (240 L/min) and is interchangeable with other three-port sequence cartridges of similar frame sizes, offering versatility in various hydraulic applications without compromising performance.
The Sun Hydraulics SQHBKWN (SQHBKWN) is a kickdown sequence valve designed for hydraulic systems where a complete and sustained flow path is required once the inlet pressure surpasses the valve's set threshold. This valve facilitates an unrestricted flow from port 1 to port 2, remaining open as long as the pressure at port 1 exceeds that at port 2. For resetting, the pressure at port 1 must drop below the set point, and flow must cease with equal or greater pressure at port 2 compared to port 1. Designed for actuator-side applications, this valve should not be used in load-holding scenarios. It features a floating style construction to reduce internal binding risks and includes a protective stainless steel screen for its main stage orifice. The valve accommodates pressures up to 5000 psi (350 bar) with a typical response time of 25 ms. Its installation requires specific torque settings: 150-160 lbf ft (203-217 Nm) for the valve and locknut torque of 80-90 lbf in (9-10 Nm). The SQHBKWN has a capacity of up to 60 gpm (240 L/min) and is interchangeable with other three-port sequence cartridges of similar frame sizes, offering versatility in various hydraulic applications without compromising performance.

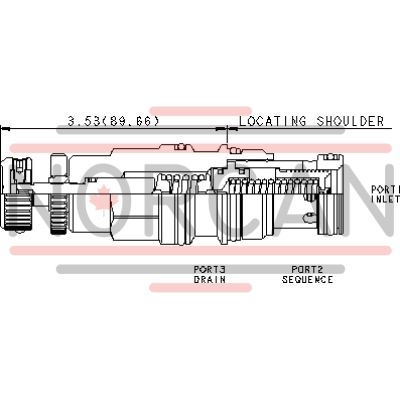

Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Should not be used in load holding applications.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Factory Pressure Settings Established at | Kick down pointKick down point |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 25 ms25 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.65 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.50 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
