SUN HYDRAULICS
SQHBQCN
$286.02 USD
- SUN HYDRAULICS
- Material:SQHBQCN
- Model:SQHB-QCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics SQHBQCN (SQHBQCN) is a kickdown sequence valve designed to manage hydraulic flow by opening completely once the inlet pressure at port 1 surpasses the valve setting, allowing an unrestricted flow from port 1 to port 2. This sequence valve remains open as long as the inlet pressure is greater than the outlet pressure, resetting only when port 1's pressure falls below its setting and flow ceases. It features a main stage orifice protected by a 150-micron stainless steel screen and is not suitable for load-holding applications. The valve is intended for use on the actuator side of hydraulic systems, requiring cessation of flow for resetting, and can be used interchangeably with other 3-port sequence cartridges of similar size. Capable of handling up to 60 gpm (240 L/min) with a maximum operating pressure of 5000 psi (350 bar), it incorporates Sun's floating style construction to prevent internal binding due to installation torque or machining variations. The SQHBQCN has a response time of approximately 25 ms and minimal leakage at standard conditions. The valve's settings can be adjusted with up to five clockwise turns, with specific torque requirements for installation and adjustment components.
The Sun Hydraulics SQHBQCN (SQHBQCN) is a kickdown sequence valve designed to manage hydraulic flow by opening completely once the inlet pressure at port 1 surpasses the valve setting, allowing an unrestricted flow from port 1 to port 2. This sequence valve remains open as long as the inlet pressure is greater than the outlet pressure, resetting only when port 1's pressure falls below its setting and flow ceases. It features a main stage orifice protected by a 150-micron stainless steel screen and is not suitable for load-holding applications. The valve is intended for use on the actuator side of hydraulic systems, requiring cessation of flow for resetting, and can be used interchangeably with other 3-port sequence cartridges of similar size. Capable of handling up to 60 gpm (240 L/min) with a maximum operating pressure of 5000 psi (350 bar), it incorporates Sun's floating style construction to prevent internal binding due to installation torque or machining variations. The SQHBQCN has a response time of approximately 25 ms and minimal leakage at standard conditions. The valve's settings can be adjusted with up to five clockwise turns, with specific torque requirements for installation and adjustment components.

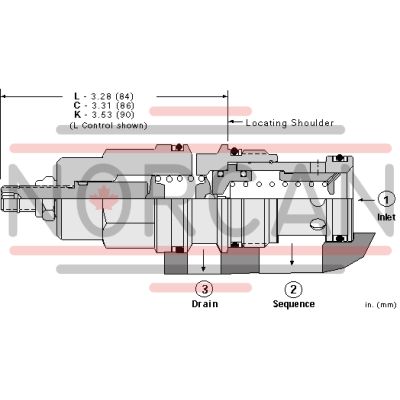

Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Should not be used in load holding applications.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Factory Pressure Settings Established at | Kick down pointKick down point |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 25 ms25 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.65 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.50 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
