The Sun Hydraulics SQJBCBV (SQJBCBV) is a robust kickdown sequence valve designed to facilitate efficient hydraulic flow control. This valve automatically opens completely and maintains an open state when the pressure at inlet port 1 surpasses the preset threshold, thereby allowing unrestricted flow from port 1 to port 2. The valve setting is directly influenced by the pressure at drain port 3, with a maximum allowable pressure of 5000 psi (350 bar). It remains open as long as the pressure at port 1 exceeds that of port 2. Resetting occurs when the pressure at port 1 drops below the valve setting, flow ceases, and pressure at port 2 matches or exceeds that at port 1. This model is part of a series where all three-port sequence cartridges are interchangeable in terms of flow path and cavity size for their frame. It is not suitable for load-holding applications due to its specific operational characteristics. The main stage orifice is safeguarded by a durable 150-micron stainless steel screen, ensuring longevity and reliability. It features Sun's floating style construction, which minimizes internal binding risks due to installation torque or machining variations. Designed primarily for actuator-side applications within hydraulic systems, it requires cessation of flow for resetting; if used on the pump side, the pump must be turned off for reset functionality. The valve supports a high capacity of up to 120 gpm (480 L/min) under maximum operating pressures and exhibits minimal leakage rates under standard conditions. Installation requires specific torque settings with detailed specifications provided for adjustment screw and locknut sizes. Additionally, it includes a Viton seal kit for enhanced sealing performance in various conditions.
The Sun Hydraulics SQJBCBV (SQJBCBV) is a robust kickdown sequence valve designed to facilitate efficient hydraulic flow control. This valve automatically opens completely and maintains an open state when the pressure at inlet port 1 surpasses the preset threshold, thereby allowing unrestricted flow from port 1 to port 2. The valve setting is directly influenced by the pressure at drain port 3, with a maximum allowable pressure of 5000 psi (350 bar). It remains open as long as the pressure at port 1 exceeds that of port 2. Resetting occurs when the pressure at port 1 drops below the valve setting, flow ceases, and pressure at port 2 matches or exceeds that at port 1. This model is part of a series where all three-port sequence cartridges are interchangeable in terms of flow path and cavity size for their frame. It is not suitable for load-holding applications due to its specific operational characteristics. The main stage orifice is safeguarded by a durable 150-micron stainless steel screen, ensuring longevity and reliability. It features Sun's floating style construction, which minimizes internal binding risks due to installation torque or machining variations. Designed primarily for actuator-side applications within hydraulic systems, it requires cessation of flow for resetting; if used on the pump side, the pump must be turned off for reset functionality. The valve supports a high capacity of up to 120 gpm (480 L/min) under maximum operating pressures and exhibits minimal leakage rates under standard conditions. Installation requires specific torque settings with detailed specifications provided for adjustment screw and locknut sizes. Additionally, it includes a Viton seal kit for enhanced sealing performance in various conditions.
Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Should not be used in load holding applications.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

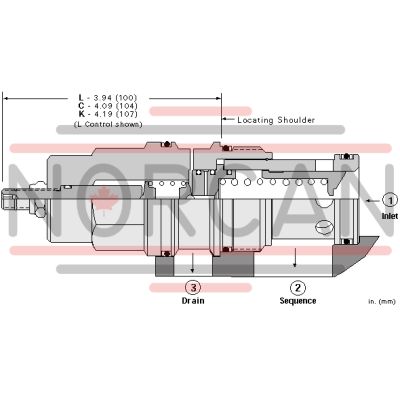

| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Factory Pressure Settings Established at | Kick down pointKick down point |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 25 ms25 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.80 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 3.10 lb1,40 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
