Sun Hydraulics-SQJBCEN-SQJBCEN

SUN HYDRAULICS
SQJBCEN


$555.87 USD
  • SUN HYDRAULICS
  • Material:SQJBCEN
  • Model:SQJB-CEN
  • Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

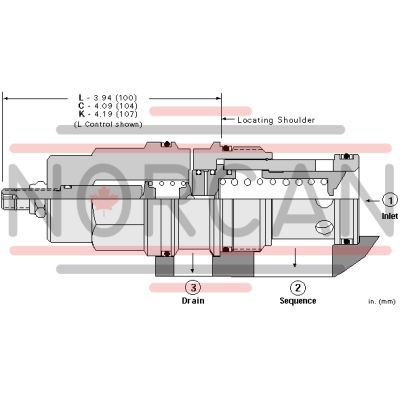

The Sun Hydraulics SQJBCEN (Material Number: SQJBCEN) is a kickdown sequence valve designed to create an unrestricted flow path from port 1 to port 2 once the inlet pressure exceeds the valve setting. This valve remains open as long as the pressure at port 1 is greater than at port 2, and it resets only when specific conditions are met, including a pressure drop at port 1 below the valve setting. It is crucial to note that this valve should not be used in load-holding applications. The valve features a main stage orifice protected by a 150-micron stainless steel screen and can handle pressures up to 5000 psi (350 bar). It incorporates Sun's floating style construction, which minimizes binding due to installation torque or machining variations. The SQJBCEN model offers a capacity of up to 120 gpm (480 L/min) and has a typical response time of 25 ms. Maximum leakage is limited to 5 in\u00b3/min (80 cc/min) at standard conditions. Installation requires specific torque settings for both the valve and locknut, ensuring secure placement and operation within hydraulic systems.

Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.

  • All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
  • Should not be used in load holding applications.
  • The main stage orifice is protected by a 150 micron stainless steel screen.
  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
CavityT-19A
Series4
Capacity120 gpm480 L/min.
Factory Pressure Settings Established atKick down pointKick down point
Maximum Operating Pressure5000 psi350 bar
Response Time - Typical25 ms25 ms
Maximum Valve Leakage at 110 SUS (24 cSt)5 in³/min.80 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 5/8 in.41,3 mm
Valve Installation Torque350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight3.10 lb1,40 kg
Seal kit - CartridgeViton: 990-019-006
