SUN HYDRAULICS
SQJBCWN
$553.88 USD
- SUN HYDRAULICS
- Material:SQJBCWN
- Model:SQJB-CWN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

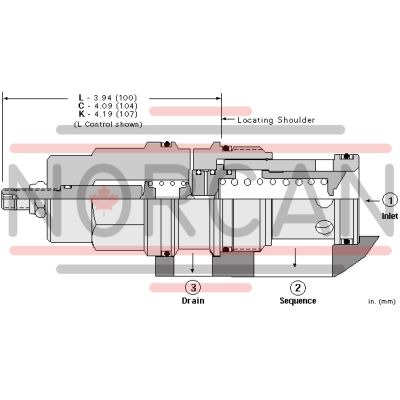

The Sun Hydraulics SQJBCWN (SQJBCWN) is a kickdown sequence valve designed to provide an unrestricted flow path from port 1 to port 2 once the pressure at the inlet port 1 exceeds the valve setting. This action occurs relative to the drain port 3, and the valve remains open as long as the pressure at port 1 stays above that at port 2. To reset, pressure at port 1 must drop below the valve setting, flow between ports must cease, and pressure at port 2 should be equal to or greater than that at port 1. The valve is not recommended for load-holding applications and features a main stage orifice protected by a 150-micron stainless steel screen. It can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of up to 120 gpm (480 L/min). The response time is typically around 25 ms with minimal leakage rates under specific conditions. The Sun floating style construction minimizes internal binding risks due to installation torque or machining variations. Suitable for use on an actuator side of a system, it requires cessation of flow for resetting; if used on the pump side, pump flow must be halted for resetting. The SQJBCWN comes with specific installation requirements including a torque range of 350-375 lbf ft (474-508 Nm) and incorporates Viton seals in its cartridge design.
The Sun Hydraulics SQJBCWN (SQJBCWN) is a kickdown sequence valve designed to provide an unrestricted flow path from port 1 to port 2 once the pressure at the inlet port 1 exceeds the valve setting. This action occurs relative to the drain port 3, and the valve remains open as long as the pressure at port 1 stays above that at port 2. To reset, pressure at port 1 must drop below the valve setting, flow between ports must cease, and pressure at port 2 should be equal to or greater than that at port 1. The valve is not recommended for load-holding applications and features a main stage orifice protected by a 150-micron stainless steel screen. It can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of up to 120 gpm (480 L/min). The response time is typically around 25 ms with minimal leakage rates under specific conditions. The Sun floating style construction minimizes internal binding risks due to installation torque or machining variations. Suitable for use on an actuator side of a system, it requires cessation of flow for resetting; if used on the pump side, pump flow must be halted for resetting. The SQJBCWN comes with specific installation requirements including a torque range of 350-375 lbf ft (474-508 Nm) and incorporates Viton seals in its cartridge design.
Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Should not be used in load holding applications.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Factory Pressure Settings Established at | Kick down pointKick down point |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 25 ms25 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.80 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 3.10 lb1,40 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
