SUN HYDRAULICS
SXCAKAN
$90.05 USD
- SUN HYDRAULICS
- Material:SXCAKAN
- Model:SXCA-KAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

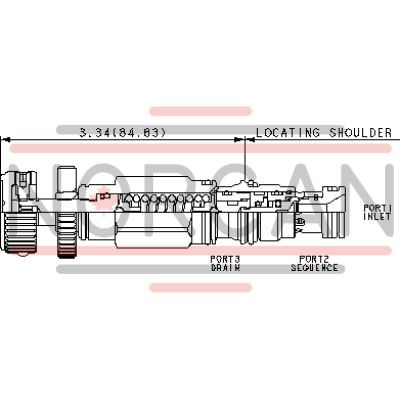

The Sun Hydraulics SXCAKAN (Material Number: SXCAKAN) is a direct-acting sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. It controls the pressure at port 1 relative to the drain port 3, making it suitable for load-holding applications. This zero pilot flow valve requires port 3 to be connected to maintain a pressure reference in the control chamber; otherwise, seal weepage could cause malfunction. The valve's pressure setting is directly additive with port 3's pressure up to a maximum of 5000 psi (350 bar). This corrosion-resistant cartridge valve features Sun\u2019s floating style construction, minimizing internal part binding due to installation torque or machining variations. The SXCAKAN model is interchangeable with other three-port sequence cartridges of similar frame size and flow path. It has a cavity type T-11A, series 1, and offers a capacity of 15 gpm (60 L/min). Factory pressure settings are established at 2 in/min (30 cc/min), with a maximum operating pressure of 5000 psi (350 bar) and typical response time of 2 ms. Maximum valve leakage at reseat is limited to 10 drops/min (0.7 cc/min). Adjustment involves up to four clockwise turns to increase the setting, with specific torque requirements for installation and locknut adjustments. The model weighs approximately .30 lb (0.15 kg) and uses Viton seal kits identified by cartridge number 990011006.
The Sun Hydraulics SXCAKAN (Material Number: SXCAKAN) is a direct-acting sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. It controls the pressure at port 1 relative to the drain port 3, making it suitable for load-holding applications. This zero pilot flow valve requires port 3 to be connected to maintain a pressure reference in the control chamber; otherwise, seal weepage could cause malfunction. The valve's pressure setting is directly additive with port 3's pressure up to a maximum of 5000 psi (350 bar). This corrosion-resistant cartridge valve features Sun\u2019s floating style construction, minimizing internal part binding due to installation torque or machining variations. The SXCAKAN model is interchangeable with other three-port sequence cartridges of similar frame size and flow path. It has a cavity type T-11A, series 1, and offers a capacity of 15 gpm (60 L/min). Factory pressure settings are established at 2 in/min (30 cc/min), with a maximum operating pressure of 5000 psi (350 bar) and typical response time of 2 ms. Maximum valve leakage at reseat is limited to 10 drops/min (0.7 cc/min). Adjustment involves up to four clockwise turns to increase the setting, with specific torque requirements for installation and locknut adjustments. The model weighs approximately .30 lb (0.15 kg) and uses Viton seal kits identified by cartridge number 990011006.
Direct-acting sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3).
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Although this is a zero pilot flow valve, port 3 (drain) must be connected to maintain a pressure reference in the control chamber. If port 3 is blocked, reciprocating seal weepage will cause the valve to malfunction.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Suitable for use in load holding applications.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 2 in³/min.30 cc/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 44 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
