SUN HYDRAULICS
SXCAKWV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

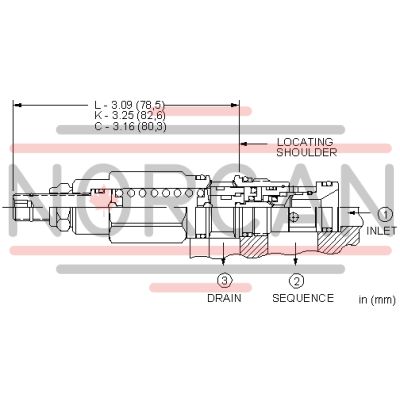

The Sun Hydraulics SXCAKWV (SXCAKWV) is a direct-acting sequence valve designed to manage the flow to a secondary circuit once the inlet port 1 pressure surpasses the pre-set threshold. This valve controls the pressure at port 1 in relation to the drain port 3, and it is crucial that port 3 remains unblocked to prevent malfunction due to reciprocating seal weepage. The SXCAKWV is suitable for load holding applications and can handle a maximum operating pressure of 5000 psi (350 bar). It features corrosion-resistant options identified by specific model code suffixes for external stainless steel or zinc-nickel plated components. The valve incorporates Sun's floating style construction, reducing the risk of internal part binding from excessive installation torque or machining variations. It fits within a T-11A cavity, has a flow capacity of 15 gpm (60 L/min), and exhibits a typical response time of 2 ms. The factory pressure settings are established at a leakage rate of 10 drops/min (0.7 cc/min) upon reseat, with adjustment facilitated by turning clockwise up to four turns. Installation requires specific torques: valve hex size is 7/8 in. (22.2 mm) with an installation torque of 30\u201335 lbf ft (41\u201347 Nm), while adjustment screw and locknut sizes are specified for precise assembly. The model weighs approximately .30 lb (.15 kg) and uses Viton seal kits for optimal performance in its applications.
