SUN HYDRAULICS
SXCALBN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

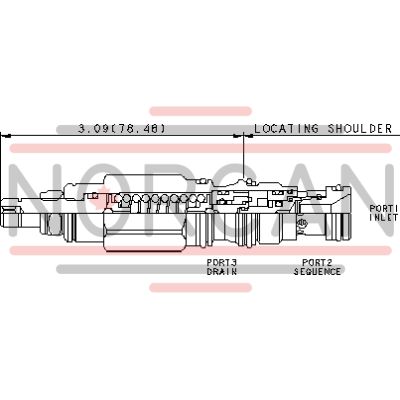

The Sun Hydraulics SXCALBN (SXCALBN) is a direct-acting sequence valve designed to supply a secondary circuit with flow once the inlet port 1 pressure exceeds the valve setting. This valve controls pressure at port 1 relative to the drain port 3, making it suitable for load holding applications. It features a zero pilot flow design but requires port 3 to be connected to maintain pressure reference in the control chamber. Blocking port 3 can cause malfunction due to reciprocating seal weepage. The valve setting is directly additive with pressure at port 3 at a 1:1 ratio, with a maximum of 5000 psi (350 bar). The SXCALBN model incorporates Sun's floating style construction, reducing the risk of internal binding from excessive torque or machining variations. It fits into cavity T-11A and has a series capacity of 15 gpm (60 L/min). Factory pressure settings are established at 2 in\u00b3/min (30 cc/min), and it operates up to a maximum pressure of 5000 psi (350 bar). Typical response time is approximately 2 ms, with maximum valve leakage at reseat being 10 drops/min (0.7 cc/min). Adjustment for increasing settings requires approximately four clockwise turns. The valve's hex size is 7/8 inch (22.2 mm), with an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), and the locknut hex size is 9/16 inch (15 mm) with a torque range of 80-90 lbf in (9-10 Nm). Weighing approximately .30 lb (.15 kg), it uses Viton seals for its cartridge, identified by seal kit number: 990011006.
