SUN HYDRAULICS
SXCBLAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

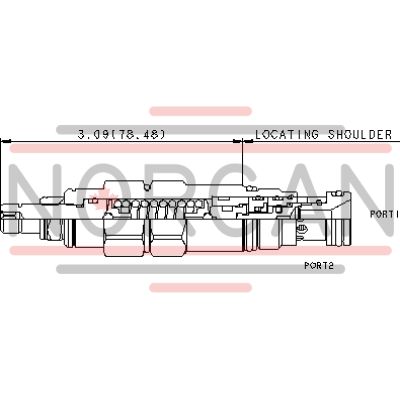

The Sun Hydraulics SXCBLAN (SXCBLAN) is an atmospherically referenced, direct-acting sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 surpasses the valve setting. This sequence valve effectively controls the pressure at port 1 relative to the atmospheric vent, making it suitable for load holding applications. It is important to note that atmospherically referenced valves should only be utilized when a drain connection is not feasible, as they may leak externally or allow moisture into the spring chamber over time. The design incorporates Sun's floating style construction, which minimizes potential binding of internal parts due to excessive installation torque or cavity/cartridge machining variations. The SXCBLAN has a cavity size of T-13A and belongs to Series 1, with a capacity of 15 gpm (60 L/min). It operates at a maximum pressure of 5000 psi (350 bar) and has a typical response time of 2 ms. The maximum valve leakage at reseat is rated at 10 drops/min (0.7 cc/min). Adjustments can be made with up to 4.4 clockwise turns to increase settings, with specific hex sizes and torque specifications for installation and adjustment components provided for precision handling. Weighing in at approximately .30 lb (.15 kg), this model is equipped with Viton seals for enhanced durability in various environments.
