SUN HYDRAULICS
SXCBLBV
$103.55 USD
- SUN HYDRAULICS
- Material:SXCBLBV
- Model:SXCB-LBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

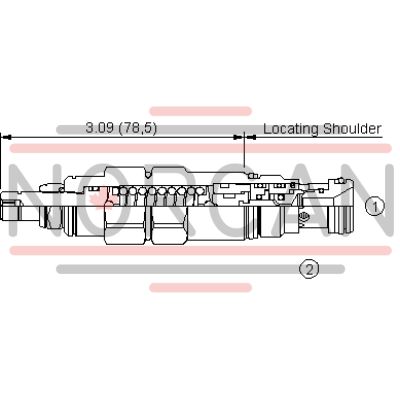

The Sun Hydraulics SXCBLBV (SXCBLBV) is an atmospherically referenced, direct-acting sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This sequence valve controls the pressure at port 1 relative to the atmospheric vent, making it suitable for load holding applications where a drain connection is not feasible. It features Sun's floating style construction to minimize internal binding due to excessive installation torque or machining variations. The valve has a capacity of 15 gpm (60 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It typically responds within 2 milliseconds and has a maximum leakage rate of 10 drops per minute at reseat. The adjustment allows for up to 44 clockwise turns to increase the setting, with specific dimensions provided for installation and adjustment tools. The SXCBLBV model weighs approximately 0.30 lb (0.15 kg) and utilizes Viton seals, with a seal kit available under part number 990010006.
The Sun Hydraulics SXCBLBV (SXCBLBV) is an atmospherically referenced, direct-acting sequence valve designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This sequence valve controls the pressure at port 1 relative to the atmospheric vent, making it suitable for load holding applications where a drain connection is not feasible. It features Sun's floating style construction to minimize internal binding due to excessive installation torque or machining variations. The valve has a capacity of 15 gpm (60 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It typically responds within 2 milliseconds and has a maximum leakage rate of 10 drops per minute at reseat. The adjustment allows for up to 44 clockwise turns to increase the setting, with specific dimensions provided for installation and adjustment tools. The SXCBLBV model weighs approximately 0.30 lb (0.15 kg) and utilizes Viton seals, with a seal kit available under part number 990010006.
Atmospherically referenced, direct-acting sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of this sequence valve controls the pressure at port 1 relative to the atmospheric vent.
- Suitable for use in load holding applications.
- Atmospherically referenced valves should only be used where it is impossible have a drain connection. Over time, the atmospherically referenced valves may leak externally or allow moisture into the spring chamber.
- Approximately 1 drop (0,07 cc) of fluid will pass into the vented spring chamber every 4000 cycles.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 2 in³/min.30 cc/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at Reseat | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 44 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
