SUN HYDRAULICS
U3F
$238.77 USD
- SUN HYDRAULICS
- Material:U3F
- Summary:Manifold
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

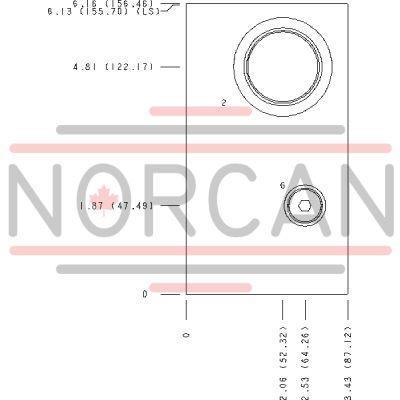

The Sun Hydraulics U3F (Material Number: U3F) is a robust line mount manifold designed for high-performance hydraulic systems. This product features a 1.25 SAE C62 interface and is crafted from 6061T651 aluminum, known for its excellent corrosion resistance and strength. The manifold is flange-mounted through the port and accommodates one open cavity with a T16A cavity type. It includes four mounting holes with specific dimensions: a diameter of .59 inches or 15 mm for metric models, a c'bore diameter of .88 inches or 22.4 mm for metric models, and a c'bore depth of .80 inches. The port size is set at 1 BSPP, making it suitable for various hydraulic applications requiring reliable pressure management. The design considerations emphasize the manifold's ability to support systems with pressures up to 3000 psi (210 bar), contingent on the material being aluminum, which is not recommended for higher pressures regardless of port size specifications. This makes it ideal for applications where moderate pressure levels are maintained without compromising structural integrity. Sun Hydraulics' choice not to anodize their manifolds stems from several logistical and performance factors, including cost efficiency, avoidance of increased breakaway torque, and maintaining optimal fatigue life by preventing crack initiation often associated with anodized surfaces. These design choices ensure that the U3F manifold remains durable under standard operating conditions while minimizing maintenance concerns related to wear surfaces. Overall, the Sun Hydraulics U3F manifold stands out as an efficient component in hydraulic systems that require dependable performance within specified pressure limits, making it an essential part of any well-designed fluid control setup.
The Sun Hydraulics U3F (Material Number: U3F) is a robust line mount manifold designed for high-performance hydraulic systems. This product features a 1.25 SAE C62 interface and is crafted from 6061T651 aluminum, known for its excellent corrosion resistance and strength. The manifold is flange-mounted through the port and accommodates one open cavity with a T16A cavity type. It includes four mounting holes with specific dimensions: a diameter of .59 inches or 15 mm for metric models, a c'bore diameter of .88 inches or 22.4 mm for metric models, and a c'bore depth of .80 inches. The port size is set at 1 BSPP, making it suitable for various hydraulic applications requiring reliable pressure management. The design considerations emphasize the manifold's ability to support systems with pressures up to 3000 psi (210 bar), contingent on the material being aluminum, which is not recommended for higher pressures regardless of port size specifications. This makes it ideal for applications where moderate pressure levels are maintained without compromising structural integrity. Sun Hydraulics' choice not to anodize their manifolds stems from several logistical and performance factors, including cost efficiency, avoidance of increased breakaway torque, and maintaining optimal fatigue life by preventing crack initiation often associated with anodized surfaces. These design choices ensure that the U3F manifold remains durable under standard operating conditions while minimizing maintenance concerns related to wear surfaces. Overall, the Sun Hydraulics U3F manifold stands out as an efficient component in hydraulic systems that require dependable performance within specified pressure limits, making it an essential part of any well-designed fluid control setup.
| Body Type | Line mountLine mount |
| Interface | 1.25 SAE C621.25 SAE C62 |
| Body Features | Flange mount through portFlange mount through port |
| Mounting Hole Diameter | .59 in. (metric models)15,0 mm (metric models) |
| Mounting Hole C'bore Diameter | .88 in. (metric models)22,4 mm (metric models) |
| Mounting Hole C'bore Depth | .80 in..80 in. |
| Mounting Hole Quantity | 44 |
| Open Cavities | 11 |
| Cavity | T-16A |
| Port Size | 1" BSPP1" BSPP |
Show FAQ
Additional Resources
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Standard Line Mount Manifolds for High Flow Valves
- Manufacturing Sun Cartridge Cavities
- Manifolds: Materials of Construction
- Sun's Floating Style Screw-In Cartridge
- Sun Model Code Explanation; 999-901-334
- Custom Integrated Packages from Sun
- Fluid and Temperature Recommendations
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
Notes:
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
