SUN HYDRAULICS
VLB
$751.15 USD
- SUN HYDRAULICS
- Material:VLB
- Summary:Manifold
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

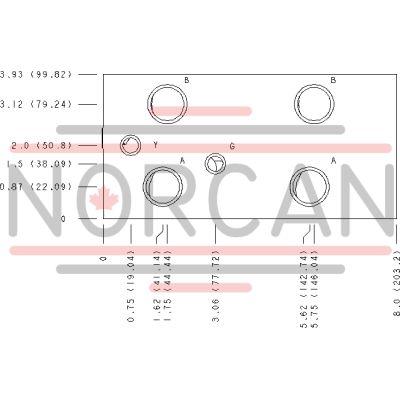

The Sun Hydraulics VLB (VLB) is a versatile bar manifold designed for hydraulic systems requiring a parallel circuit with relief cavity. This specific model features a 2-station configuration, making it suitable for applications where multiple hydraulic functions are needed in a compact form. The manifold is constructed with an ISO 07 interface, providing compatibility with various components adhering to this standard. It incorporates a robust design with M10x1.5 threaded mounting holes, each with a depth of .75 inches (19 mm), and includes four such mounting holes to ensure secure installation. Additionally, the VLB model has an open cavity type T3A and port size of 3/4 NPTF, allowing for efficient fluid flow and connectivity within the system. Manufactured from 6061-T651 aluminum, the VLB manifold offers excellent corrosion resistance without the need for anodizing, thanks to its material properties that withstand harsh environments while maintaining structural integrity. This aluminum alloy ensures durability and reliability in demanding conditions while being relatively easy to machine and cost-effective. The manifold\u2019s design accommodates up to 3000 psi (210 bar) pressure ratings, making it suitable for medium-pressure hydraulic applications. The VLB model is ideal for use in systems where space optimization and multiple circuit integrations are critical. Its design allows for straightforward integration into existing hydraulic setups or new installations requiring efficient fluid distribution across multiple stations. With its precise engineering and adherence to industry standards, the Sun Hydraulics VLB manifold provides dependable performance in various hydraulic applications demanding high-quality components tailored to specific operational needs.
The Sun Hydraulics VLB (VLB) is a versatile bar manifold designed for hydraulic systems requiring a parallel circuit with relief cavity. This specific model features a 2-station configuration, making it suitable for applications where multiple hydraulic functions are needed in a compact form. The manifold is constructed with an ISO 07 interface, providing compatibility with various components adhering to this standard. It incorporates a robust design with M10x1.5 threaded mounting holes, each with a depth of .75 inches (19 mm), and includes four such mounting holes to ensure secure installation. Additionally, the VLB model has an open cavity type T3A and port size of 3/4 NPTF, allowing for efficient fluid flow and connectivity within the system. Manufactured from 6061-T651 aluminum, the VLB manifold offers excellent corrosion resistance without the need for anodizing, thanks to its material properties that withstand harsh environments while maintaining structural integrity. This aluminum alloy ensures durability and reliability in demanding conditions while being relatively easy to machine and cost-effective. The manifold\u2019s design accommodates up to 3000 psi (210 bar) pressure ratings, making it suitable for medium-pressure hydraulic applications. The VLB model is ideal for use in systems where space optimization and multiple circuit integrations are critical. Its design allows for straightforward integration into existing hydraulic setups or new installations requiring efficient fluid distribution across multiple stations. With its precise engineering and adherence to industry standards, the Sun Hydraulics VLB manifold provides dependable performance in various hydraulic applications demanding high-quality components tailored to specific operational needs.
| Body Type | Bar ManifoldBar Manifold |
| Interface | ISO 07ISO 07 |
| Body Features | 2 Station, Parallel circuit with relief cavity2 Station, Parallel circuit with relief cavity |
| Mounting Hole Thread | M10x1.5 - 6HM10x1.5 - 6H |
| Mounting Hole Depth | .75 in.19 mm |
| Mounting Hole Quantity | 44 |
| Open Cavities | 11 |
| Cavity | T-3A |
| Port Size | 3/4" NPTF3/4" NPTF |
Show FAQ
Additional Resources
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Manufacturing Sun Cartridge Cavities
- Sun Model Code Explanation; 999-901-334
- Custom Integrated Packages from Sun
- Fluid and Temperature Recommendations
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
- Manifolds: Materials of Construction
- Sun's Floating Style Screw-In Cartridge
Notes:
- For mounting bracket information, see catalog or drawing 991-021-***
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
