SUN HYDRAULICS
VSL

$126.98 USD

SUN HYDRAULICS
Material:VSL
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

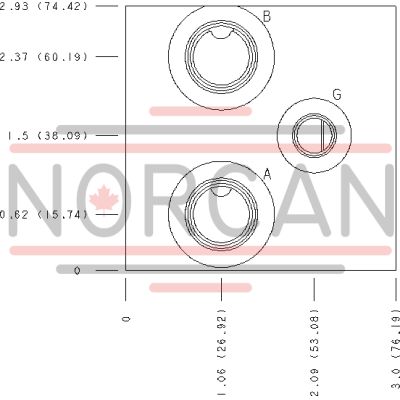

The Sun Hydraulics VSL (Material Number: VSL) is a hydraulic manifold designed for efficient fluid control in various hydraulic systems. This particular model features a one-station, parallel circuit configuration with a relief cavity, making it suitable for applications requiring precise pressure management. The manifold is constructed from 6061 aluminum, known for its corrosion resistance and strength, providing durability in demanding environments. It conforms to the ISO 03 interface standard and includes SAE 8 port sizes for compatibility with a range of hydraulic components. The VSL manifold has a body type classified as Bar Manifold, with mounting hole threads of .312-18 UNC 2B in., and a depth of .44 inches (11.1 mm), ensuring secure installation. It includes four mounting holes to accommodate various system setups and one open cavity designed to house Sun's T10A cavity inserts. This manifold can handle pressures up to 3000 psi (210 bar), which should be carefully considered during system design to ensure safety and performance. This product is ideal for use in systems where space efficiency and reliable pressure control are critical. Its robust construction allows it to withstand harsh conditions without compromising functionality, making it an excellent choice for both industrial and mobile hydraulic applications that require dependable performance over time.

Description

Body Type	Bar ManifoldBar Manifold
Interface	ISO 03ISO 03
Body Features	1 Station, Parallel circuit with relief cavity1 Station, Parallel circuit with relief cavity
Mounting Hole Thread	.312-18 UNC - 2B in..312-18 UNC - 2B in.
Mounting Hole Depth	.44 in.11.1 mm
Mounting Hole Quantity	44
Open Cavities	11
Cavity	T-10A
Port Size	SAE 8SAE 8

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

For mounting bracket information, see catalog or drawing 991-021-***
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
