SUN HYDRAULICS
VZG

$228.55 USD

SUN HYDRAULICS
Material:VZG
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

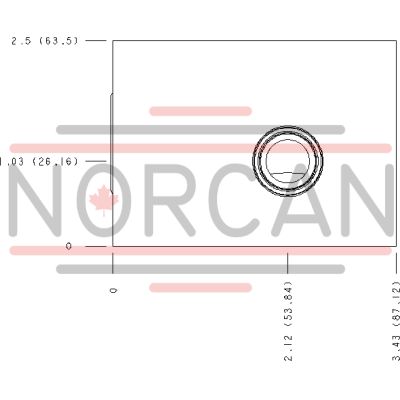

The Sun Hydraulics VZG (Material Number: VZG) is a motor mount manifold designed to facilitate control and protection of hydraulic motors. This product features a motor mount interface compatible with Eaton Char-Lynn 4000 and 6000 series motors, making it versatile for various hydraulic applications. The body type is specifically crafted for cross-port functionality, allowing efficient fluid transfer between ports. It includes open cavities, specifically the T-10A cavity, and has port sizes of 3/4 BSPP, ensuring compatibility with standard fittings. Constructed from 6061-T651 aluminum, this manifold benefits from excellent corrosion resistance while maintaining structural integrity under operational conditions. However, it is important to note that manifolds made from aluminum are not suitable for pressure ratings exceeding 3000 psi (210 bar). The design considerations involve ensuring the maximum system pressure does not surpass these limits to maintain safety and performance standards. The Sun Hydraulics VZG manifold is engineered without anodizing, which helps preserve its fatigue life by avoiding the brittle surface layer that anodizing can introduce on aluminum components. This choice supports the longevity and reliability of the manifold in demanding environments where fatigue failure could be a concern. This product is ideal for use in systems where robust hydraulic motor control and protection are required without compromising on durability or performance due to environmental factors.

Description

Body Type	Motor mountMotor mount
Interface	Eaton/Char-Lynn 4000/6000Eaton/Char-Lynn 4000/6000
Body Features	Cross portCross port
Open Cavities	22
Cavity	T-10A
Port Size	3/4" BSPP3/4" BSPP

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
