SUN HYDRAULICS
W3E

$62.94 USD

SUN HYDRAULICS
Material:W3E
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

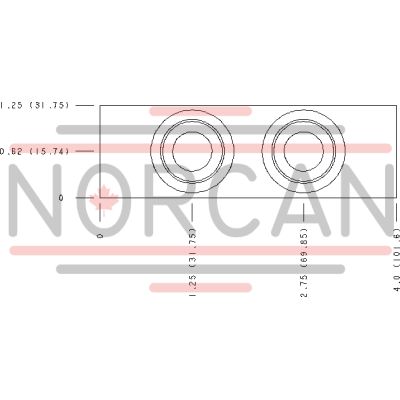

The Sun Hydraulics W3E (Material Number: W3E) is a line mount manifold designed for hydraulic systems, featuring a cross pilot body type. This versatile component is equipped with two mounting holes, each with a diameter of 0.34 inches (8.6 mm), allowing for ease of installation in various configurations. The manifold accommodates open cavities T11A and utilizes M22 x 1.56H port sizes, ensuring compatibility with a range of hydraulic applications. Constructed from 6061T651 aluminum, the W3E offers excellent corrosion resistance and durability, making it suitable for demanding environments where long-term reliability is essential. The design of the Sun Hydraulics W3E emphasizes practical functionality without the need for anodizing, which can compromise fatigue life due to increased brittleness. This decision ensures that the manifold maintains its integrity under pressure up to 3000 psi (210 bar), which is critical for maintaining system performance and safety. The manifold's construction supports high flow valves and integrates seamlessly into custom hydraulic systems. Overall, the Sun Hydraulics W3E is engineered to provide robust performance in hydraulic applications where reliable pressure management and system efficiency are priorities. Its design and material choice reflect a commitment to quality and longevity in hydraulic system components.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Cross pilotCross pilot
Mounting Hole Diameter	.34 in.8.6 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	22
Cavity	T-11A
Port Size	M22 x 1.5-6HM22 x 1.5-6H

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
