SUN HYDRAULICS
WNX

$62.25 USD

SUN HYDRAULICS
Material:WNX
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

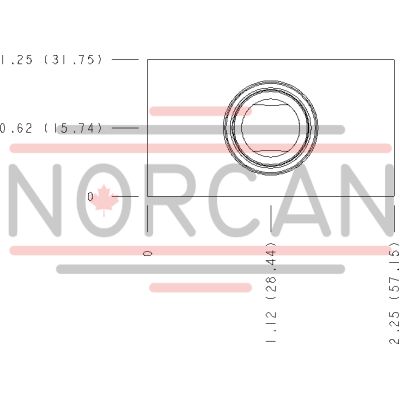

The Sun Hydraulics WNX (Material Number: WNX) is a versatile line mount manifold designed for hydraulic systems requiring dual through ports. This component features a robust construction with a mounting hole diameter of 0.34 inches (8.6 mm) and is equipped with two mounting holes, ensuring secure installation in various applications. The manifold accommodates one open cavity and is compatible with the T-10A cavity type, providing flexibility for different system requirements. It includes 1/4 BSPP port sizes, making it suitable for standard hydraulic connections. Constructed from 6061T651 aluminum, the WNX manifold offers excellent corrosion resistance without the need for anodizing, which can compromise fatigue life and increase costs. This material choice ensures durability in demanding environments while maintaining cost-effectiveness and availability. The manifold's design supports a maximum system pressure of 3000 psi (210 bar), making it suitable for medium-pressure applications. The Sun Hydraulics WNX manifold is ideal for use in hydraulic circuits where efficient fluid distribution is paramount. Its straightforward design allows for easy integration into existing systems, providing reliable performance across various hydraulic applications. Whether used in mobile equipment or industrial machinery, this line mount manifold delivers dependable service with minimal maintenance requirements due to its resilient construction and thoughtful engineering.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Dual through portDual through port
Mounting Hole Diameter	.34 in.8.6 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-10A
Port Size	1/4" BSPP1/4" BSPP

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
