SUN HYDRAULICS
XICAXXV
$84.39 USD
- SUN HYDRAULICS
- Material:XICAXXV
- Model:XICA-XXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics XICAXXV (XICAXXV) is a high-strength cavity plug designed to block all ports in hydraulic systems. It features EPDM seals, making it suitable for use with phosphate ester fluids, though it should not be exposed to petroleum-based fluids, greases, or lubricants as these can damage the seals. This plug is particularly suited for corrosive environments due to its corrosion-resistant design, which includes a body made from lean duplex stainless steel and internal parts crafted from carbon steel leaded alloy. The XICAXXV model is part of the Cavity T-16A Series 3 and can handle a maximum operating pressure of 5000 psi (350 bar). It has a 2-port configuration and requires an installation torque between 150 to 160 lbf ft (203 to 217 Nm), with a valve hex size of 1 1/4 inches (31.8 mm). For sealing purposes, the cartridge uses Viton seal kits identified as part number 990016006. This product is ideal for applications requiring robust performance in harsh conditions, providing reliable sealing and blocking capabilities while ensuring longevity even in demanding environments.
The Sun Hydraulics XICAXXV (XICAXXV) is a high-strength cavity plug designed to block all ports in hydraulic systems. It features EPDM seals, making it suitable for use with phosphate ester fluids, though it should not be exposed to petroleum-based fluids, greases, or lubricants as these can damage the seals. This plug is particularly suited for corrosive environments due to its corrosion-resistant design, which includes a body made from lean duplex stainless steel and internal parts crafted from carbon steel leaded alloy. The XICAXXV model is part of the Cavity T-16A Series 3 and can handle a maximum operating pressure of 5000 psi (350 bar). It has a 2-port configuration and requires an installation torque between 150 to 160 lbf ft (203 to 217 Nm), with a valve hex size of 1 1/4 inches (31.8 mm). For sealing purposes, the cartridge uses Viton seal kits identified as part number 990016006. This product is ideal for applications requiring robust performance in harsh conditions, providing reliable sealing and blocking capabilities while ensuring longevity even in demanding environments.

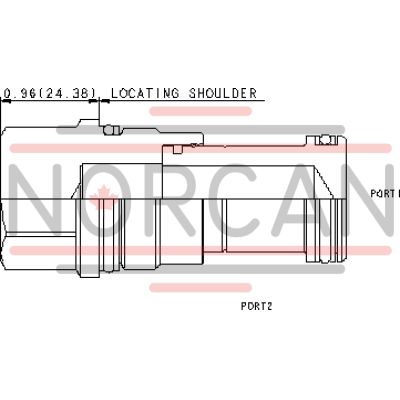

This cavity plug blocks all ports.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cavity plugs are intended for use in corrosive environments and are identified by the model code suffix /AP (see Option Selection below). The bodies of these plugs are made from high strength lean duplex stainless steel. Internal parts are made from carbon steel leaded alloy, the same as standard plugs.
| Cavity | T-16A |
| Series | 3 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Port Configuration | 2 Port2 Port |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-016-006 |
