SUN HYDRAULICS
ZAW

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

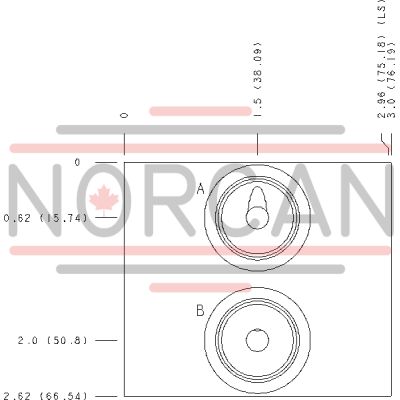

The Sun Hydraulics ZAW (Material Number: ZAW) is a subplate designed for hydraulic systems, featuring an ISO 03 interface and constructed from 6061-T651 aluminum. This material choice offers a balance of strength and corrosion resistance, making it suitable for various hydraulic applications. The subplate includes two mounting holes with a diameter of .34 inches (8.6 mm) and depth through the body, complemented by counterbore dimensions of .50 inches (12.7 mm) in diameter and .38 inches (9.7 mm) in depth. It accommodates up to two open cavities and utilizes the T5A cavity type with SAE 10 port size, ensuring compatibility with common hydraulic components. The ZAW model's design focuses on efficient fluid management within hydraulic circuits, making it an ideal component for systems requiring robust and reliable manifold solutions. The use of 6061-T651 aluminum ensures durability while maintaining cost-effectiveness, although it is important to note that this material limits the pressure rating to a maximum of 3000 psi (210 bar). This pressure limitation should be carefully considered during system design to ensure safe operation. Sun Hydraulics has opted not to anodize the aluminum body of the ZAW model due to potential drawbacks such as increased cost, logistical challenges, and reduced fatigue life associated with anodizing processes. Despite this, the natural properties of 6061-T651 aluminum provide sufficient corrosion resistance for most applications without additional surface treatment. The subplate's construction facilitates easy integration into existing systems while maintaining high performance standards expected in demanding hydraulic environments.
