SUN HYDRAULICS
ZDH

$120.03 USD

SUN HYDRAULICS
Material:ZDH
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

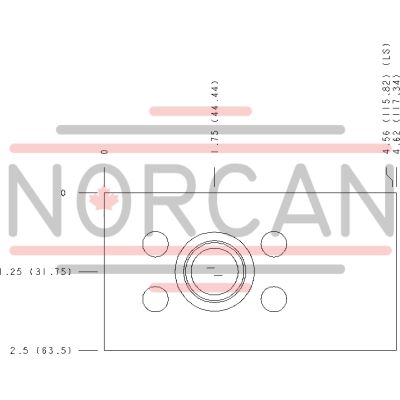

The Sun Hydraulics ZDH (Material Number: ZDH) is a line mount manifold designed for hydraulic systems. It features a 0.75 SAE C61 interface and is constructed for flange mount through port applications. The manifold includes four mounting holes with a diameter of 0.42 inches, accommodating metric models with a depth that allows for through installation. Each mounting hole has a counterbore diameter of 0.68 inches and a depth of 0.34 inches, ensuring secure attachment in hydraulic setups. The ZDH model is equipped with one open cavity, specifically the T10A cavity, and utilizes port sizes conforming to the 34 Code 61 specification. This manifold is crafted from 6061 T651 aluminum, chosen for its strength, cost-effectiveness, machinability, availability in various shapes and sizes, and excellent corrosion resistance. However, it is important to note that Sun Hydraulics does not anodize their aluminum bodies due to several reasons including cost implications and potential negative impacts on fatigue life. The Sun ZDH manifold is ideally suited for use in hydraulic systems where high flow valves are employed. Its robust construction allows it to withstand pressures up to 3000 psi (210 bar), making it suitable for demanding applications while maintaining reliability and performance over time. This makes the ZDH an effective choice for integration into custom hydraulic solutions requiring durable line mount manifolds with precise specifications.

Description

Body Type	Line mountLine mount
Interface	0.75 SAE C610.75 SAE C61
Body Features	Flange mount through portFlange mount through port
Mounting Hole Diameter	.42 in. (metric models)10,7 mm (metric models)
Mounting Hole Depth	ThroughThrough
Mounting Hole C'bore Diameter	.68 in. (metric models).68 in. (metric models)
Mounting Hole C'bore Depth	.34 in.8.6 mm
Mounting Hole Quantity	44
Open Cavities	11
Cavity	T-10A
Port Size	3/4" Code 613/4" Code 61

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
