SUN HYDRAULICS
ZFZ

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

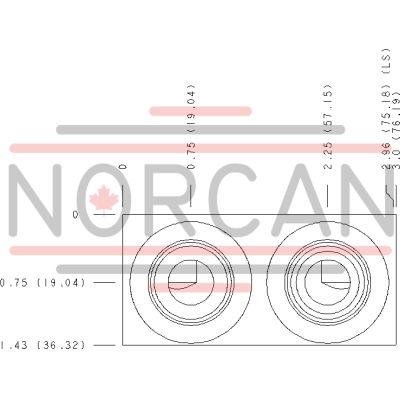

The Sun Hydraulics ZFZ (Material Number: ZFZ) is a motor mount manifold specifically designed for seamless integration with Eaton CharLynn H and S series hydraulic motors. This product features a body type optimized for motor mounting, with a robust interface tailored to the specified Eaton models. The manifold includes four mounting holes, each with a diameter of 0.34 inches (8.6 mm), and is engineered to accommodate through-hole mounting, ensuring secure attachment and stability in demanding applications. Additionally, the ZFZ model incorporates open cavities and utilizes the T-13A cavity specification, providing versatility in hydraulic circuit design. The port size for this manifold is SAE 10, which supports effective fluid transfer within hydraulic systems. It is important to note that when using this manifold with CharLynn S series motors, a riser gage port adapter is required; compatible adapters include Sun models ZVQ NPT, WPA SAE, and WPB BSPP. Constructed from 6061-T651 aluminum, the Sun Hydraulics ZFZ manifold offers excellent corrosion resistance while maintaining strength and affordability. However, it should be noted that this material limits the maximum pressure rating of the manifold to 3000 psi (210 bar). Users must carefully consider system pressure requirements to ensure safe operation within these parameters. This motor mount manifold facilitates control and protection of hydraulic motors by providing an efficient plumbing solution without the need for anodizing processes often associated with increased cost and decreased fatigue life. The design ensures reliable performance while minimizing potential issues related to wear surfaces or torque during maintenance procedures.
