SUN HYDRAULICS
ZGF

$162.82 USD

SUN HYDRAULICS
Material:ZGF
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

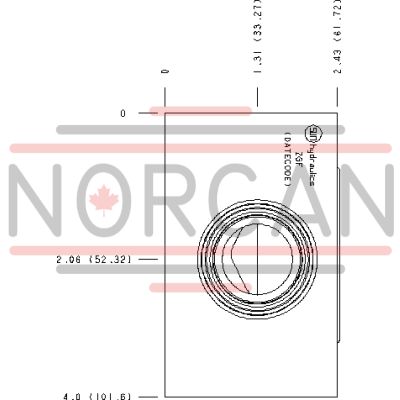

The Sun Hydraulics ZGF (Material Number: ZGF) is a line mount manifold designed for hydraulic systems. It features a 2.00 SAE C61 interface and is constructed from 6061T651 aluminum, known for its excellent corrosion resistance and strength. This manifold is specifically designed to be directly mounted, providing a streamlined installation process with open cavities of type 11C and T17A cavity configuration. The port size adheres to the 2 Code 61 standard, ensuring compatibility with various hydraulic components. It is important to note that while the manifold offers robust construction, it should not be used in systems exceeding a pressure of 3000 psi (210 bar), as the aluminum material dictates this limitation regardless of port type or size. The ZGF model does not undergo anodization due to considerations around cost, logistics, and potential impacts on fatigue life, which can significantly reduce durability under pressurization by up to 50%. This design choice prioritizes structural integrity over surface wear resistance, making it ideal for applications where the manifold serves primarily as plumbing rather than a wear-intensive component.

Description

Body Type	Line mountLine mount
Interface	2.00 SAE C612.00 SAE C61
Body Features	Direct mountDirect mount
Open Cavities	11
Cavity	T-17A
Port Size	2" Code 612" Code 61

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
