SUN HYDRAULICS
ZLR

$252.57 USD

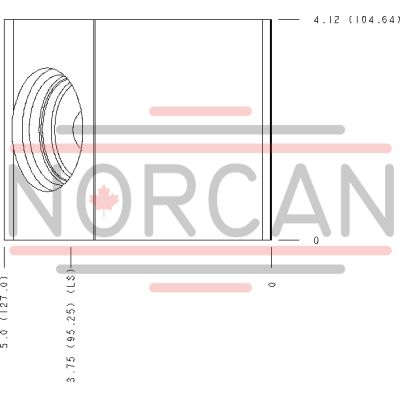

SUN HYDRAULICS
Material:ZLR
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics ZLR (Material Number: ZLR) is a robust line mount manifold designed for hydraulic systems that demand efficient fluid control. Featuring an interface for 2.00 SAE C61 metric models, this manifold is crafted from 6061T651 aluminum, which offers excellent corrosion resistance and strength, making it suitable for various applications where durability is critical. The body type is inline with a mounting hole diameter of .53 inches (13.5 mm) and has a total of 11 mounting holes drilled through the body. It is designed with open cavities compatible with the T18A cavity type and supports port size 2 Code 61 connections. The manifold's construction ensures reliable performance in hydraulic circuits, while its aluminum body provides a lightweight yet sturdy solution capable of handling pressures up to 3000 psi (210 bar). This makes it ideal for use in environments where weight considerations are important alongside performance requirements. The design does not include anodizing, aligning with Sun Hydraulics' focus on maintaining the natural corrosion resistance of aluminum without compromising fatigue life or increasing costs unnecessarily. This product is particularly suited for high flow valve applications due to its standard line mount configuration, offering flexibility and ease of integration into existing hydraulic systems.

Description

Body Type	Line mountLine mount
Interface	2.00 SAE C61 (metric models)2.00 SAE C61 (metric models)
Body Features	InlineInline
Mounting Hole Diameter	.53 in.13,5 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	11
Open Cavities	11
Cavity	T-18A
Port Size	2" Code 612" Code 61

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
