SUN HYDRAULICS
ZMC

$653.66 USD

SUN HYDRAULICS
Material:ZMC
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

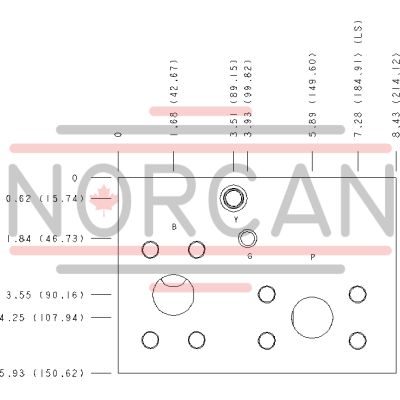

The Sun Hydraulics ZMC (Material Number: ZMC) is a robust subplate designed for hydraulic systems, compatible with the ISO 08 interface. This model is specifically engineered to manage hydraulic flow with features that include a configuration on P, port 3 to T, allowing for efficient fluid transfer and control. The ZMC subplate is built with M12x1.75 6H metric mounting holes, offering a depth of 1.00 inch (25.4 mm) and includes two mounting holes for secure installation. It also contains one open cavity and utilizes the T19A cavity type, ensuring compatibility with various hydraulic components. The subplate's port size adheres to the 12 Code 61 standard, which facilitates seamless integration into existing hydraulic systems while maintaining optimal performance. Constructed from high-quality materials like 6061-T651 aluminum, the ZMC provides excellent corrosion resistance without the need for anodizing, thus extending its service life in demanding environments. This product is ideally suited for applications that require reliable flow management in hydraulic circuits, making it an essential component in systems where pressure management and efficient fluid distribution are critical. However, users should note that aluminum manifolds like the ZMC are not rated for pressures exceeding 3000 psi (210 bar), emphasizing the importance of considering maximum system pressure during implementation to ensure safety and functionality within specified limits.

Description

Body Type	SubplateSubplate
Interface	ISO 08ISO 08
Body Features	On P, port 3 to TOn P, port 3 to T
Mounting Hole Thread	M12x1.75 - 6H (metric models)M12x1.75 - 6H (metric models)
Mounting Hole Depth	1.00 in.25,4 mm
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-19A
Port Size	1/2" Code 611/2" Code 61

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
