SUN HYDRAULICS
ZTL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

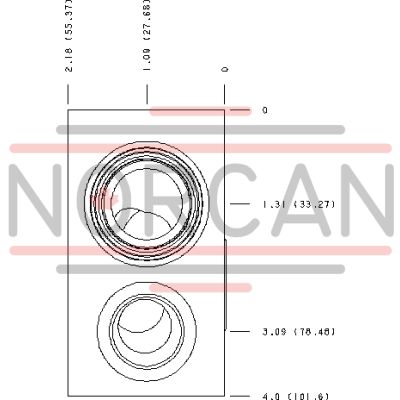

The Sun Hydraulics ZTL (Material Number: ZTL) is a line mount manifold designed for hydraulic systems requiring efficient flow management and component integration. This model features a direct mount, cross pilot body design, allowing seamless integration into existing hydraulic circuits. It supports a mounting hole diameter of 0.50 inches (12.7 mm) with a through-depth configuration, accommodating a c'bore diameter of 0.75 inches (19 mm) and depth of 0.44 inches (11.1 mm). The manifold is equipped with two mounting holes and one open cavity, specifically designed to fit the T-17A cavity type. The ZTL model utilizes port sizes of 3/4 BSPP, ensuring compatibility with various hydraulic fittings and components for versatile application in different hydraulic setups. Constructed from 6061-T651 aluminum, this manifold offers excellent corrosion resistance without the need for anodizing, which would otherwise increase costs and affect fatigue life negatively. It is crucial to consider the maximum system pressure when implementing this manifold as it is rated for pressures up to 3000 psi (210 bar), given its aluminum construction. This makes it suitable for medium-pressure applications where weight reduction is beneficial without compromising structural integrity. The ZTL's design facilitates easy installation and maintenance within hydraulic systems, making it ideal for applications that require reliable fluid control and distribution across multiple circuits or components. Its robust construction ensures long-term durability while maintaining performance consistency under specified pressure ratings.
